Description
BF Balanced Flue – no chimney required

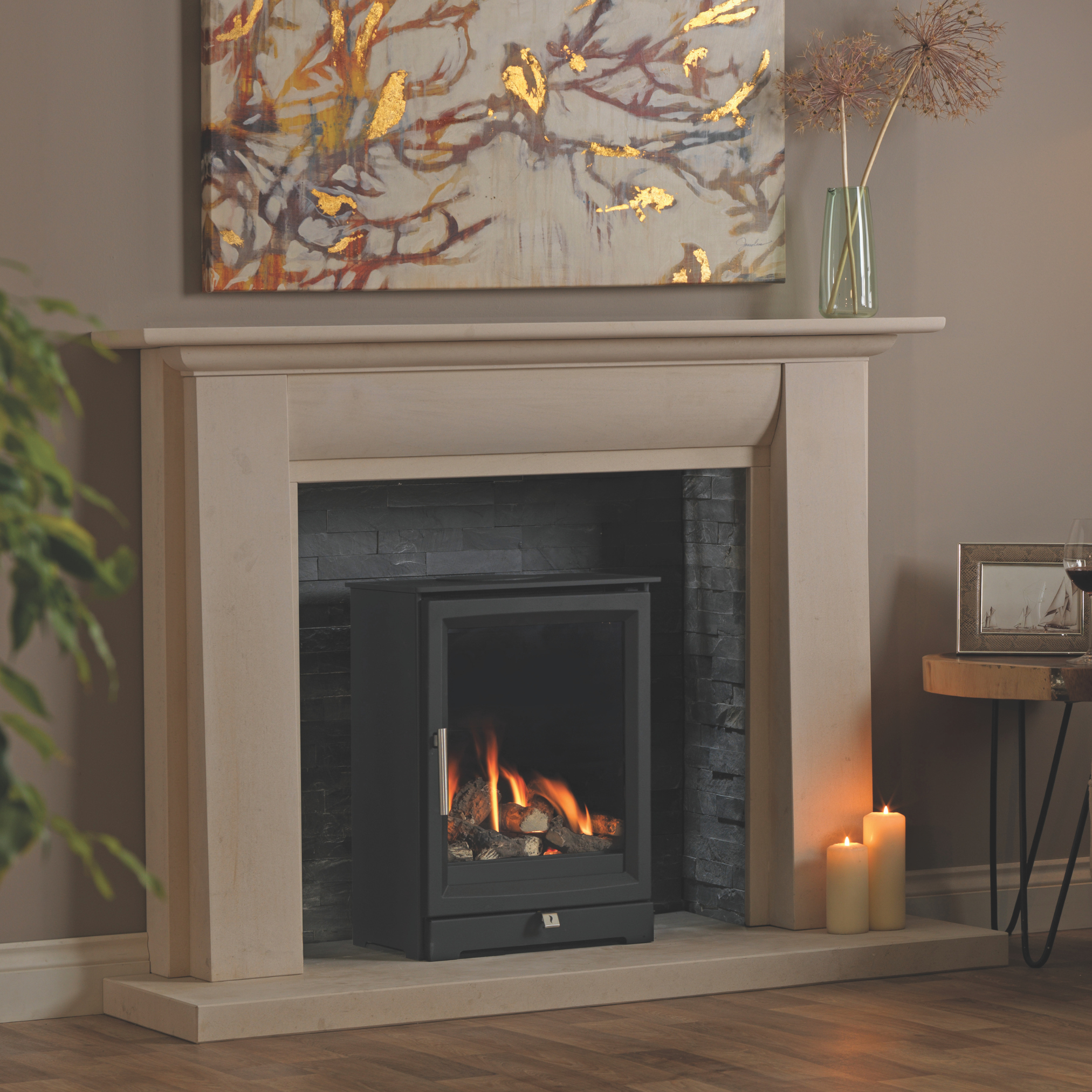

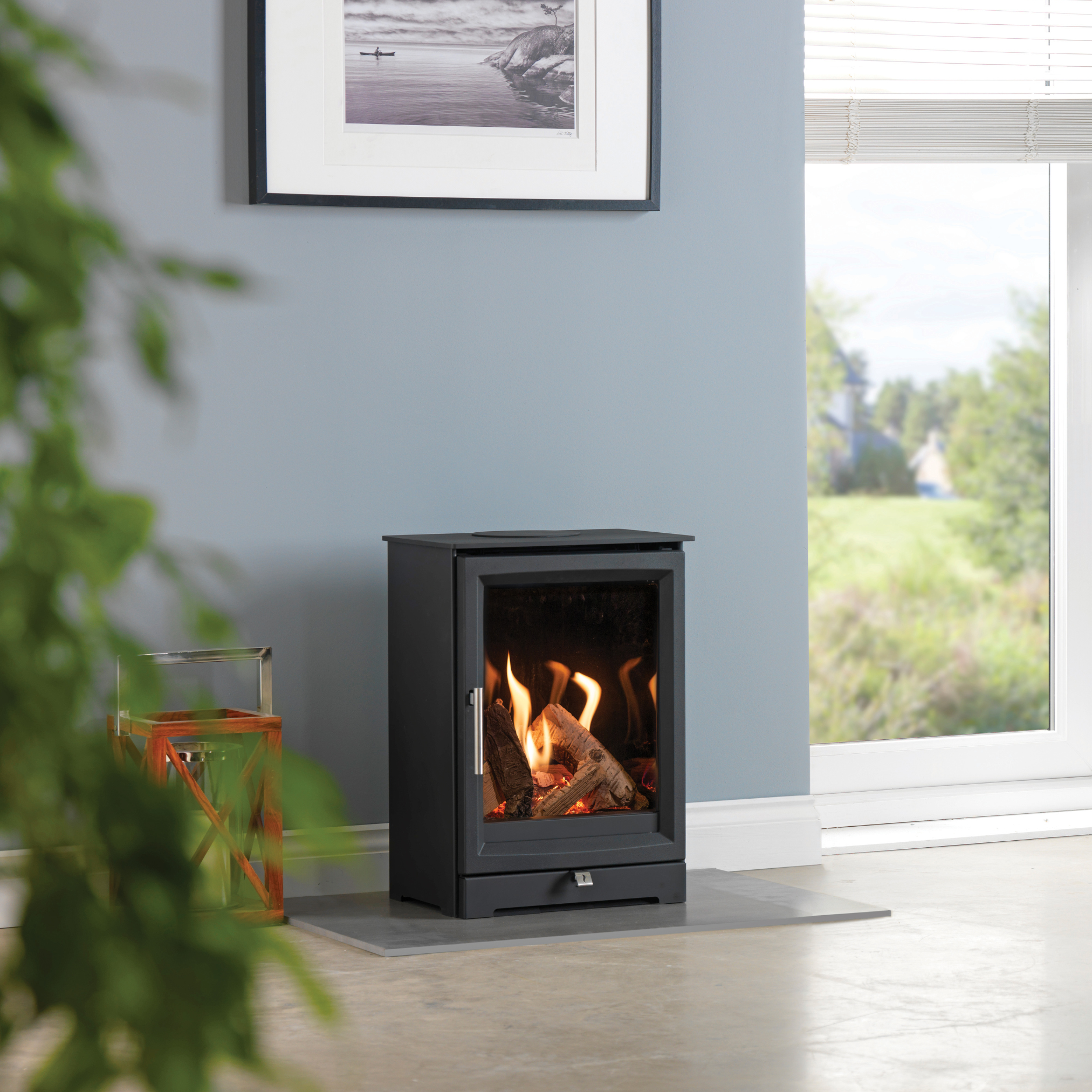

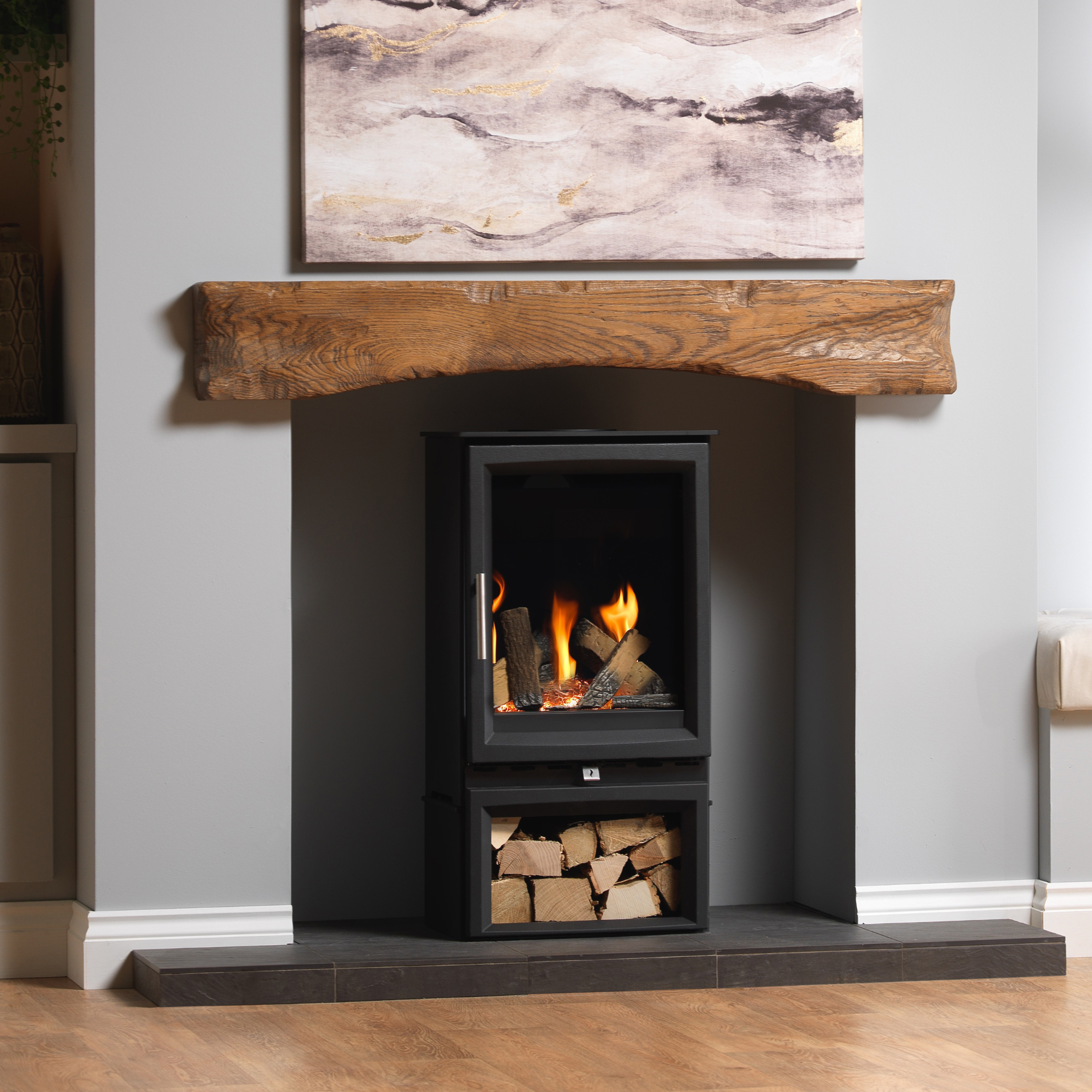

The Paragon Edge BF (balanced flue) is designed to fit where a usable chimney is not available. Perfect for both Limestone and Inglenook installations, this contemporary stove suits all interior styles.

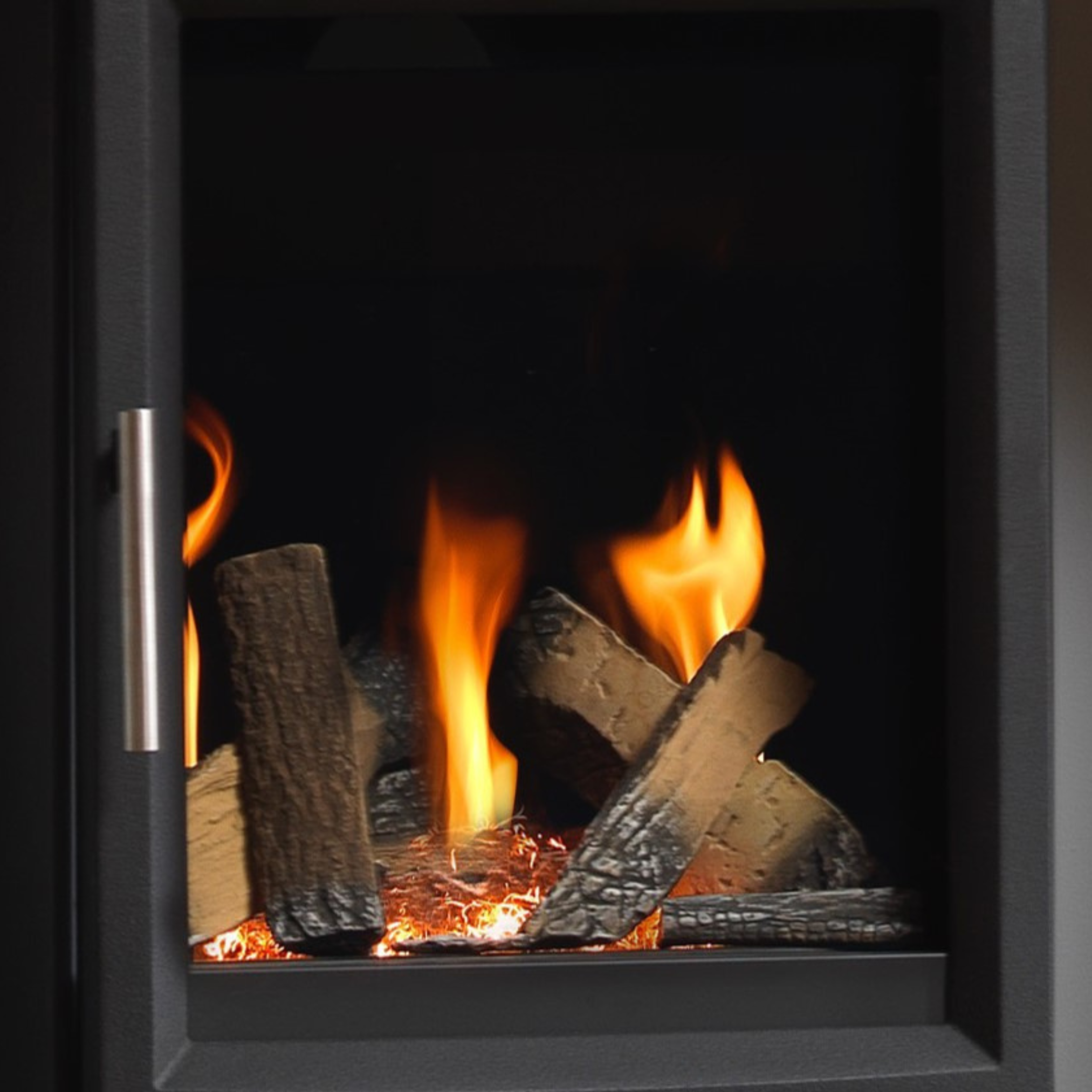

This stylish balanced flue gas stove offers a large panoramic glass window, showcasing the mixed log effect fuel bed and the nest of embers within.
KEY FEATURES:
- Net thermal efficiency: 95% tested to BS EN 613:2021
- 5kW heat output
- Black mirror glass or vermiculite firebox liners
- Low voltage 9V 2000mA plug-in transformer for easy electrical installation
- Mixed log fuel bed for natural gas models, or woodland log fuel bed for LPG models
- Bluetooth remote control system – on/off, pilot standby and variable rate between high and low rate
- Large panoramic glass window for full flame view
- Compatible with stand, wall mounting plate, and log store accessories.
SPECIFICATIONS AND OPTIONS:
| Gas Type | NG | LPG |
| Chimney Type | Balanced Flue | Balanced Flue |
| Gross Input High (kW) | 5.90 | 5.10 |
| Output High (kW) | 5.00 | 4.20 |
| Net Efficiency (%) | 95.0 | 89.0 (Up & Out) |
| Input Low (kW) | 3.8 | 3.8 |
| Efficiency Class | 1 | 1 |
| Energy Class | B | C |
| Slide Control | No | No |
| Remote Control | Yes | Yes |
| Visible Dimensions | 300 x 370 | 300 x 370 |
FIREPLACE OPENINGS:
| NG | LPG | |
| Height Min (mm) | 645 | 645 |
| Height Max (mm) | N/A | N/A |
| Width Min (mm) | 506 | 506 |
| Width Max (mm) | N/A | N/A |
| Depth Min (mm) | 373 | 373 |
Optional Extras Available - Please contact us for further information or to purchase:
- Balanced Flue 500mm Length
- Balanced Flue 1000mm Length
- Balanced Flue Joining Band
- Balanced Flue Support Brackets
- Balanced Flue Wall Band
- 2 Metre Extension Lead
- Battery Cell Holder & Battery Power Lead
