Description
Compact design. Classic styling. Built for smaller spaces.
The Oakleaf Farrow 5kW is designed specifically for smaller rooms and standard builder’s openings, offering a perfect balance of traditional charm and modern performance. Its clean lines and compact proportions make it an ideal choice for both contemporary and classic interiors.
Despite its size, the Farrow delivers an impressive flame picture through its large glass viewing window, creating a warm and inviting focal point. With dual slider controls for primary air intake and secondary airwash, you have complete control over combustion and flame performance.
Key Features
- Compact stove designed for smaller rooms and fireplace openings
- Multifuel capability – burns wood and smokeless fuels
- Large glass viewing window for a striking flame picture
- DEFRA approved for cleaner burning
- Airwash system to help keep glass clear
- Primary and secondary air controls via dual sliders
- Direct air intake for improved efficiency
- Top & rear flue outlet options
- Vermiculite lined firebox for enhanced performance
- Steel body with cast iron door for durability
- A energy rating
- 5 year warranty (body only)
Designed for Smaller Spaces
The Farrow is perfectly proportioned to fit neatly into a standard builder’s opening, making it an excellent choice where space is limited but performance and style are still essential.
Specification
| Specification | Details |
|---|---|
| Brand | Oakleaf Stoves |
| Model | Farrow 5kW |
| Fuel Type | Wood / Smokeless Fuels (Multifuel) |
| Nominal Heat Output | Wood: 5.0kW / Smokeless: 4.9kW |
| Efficiency | Wood: 75.6% / Smokeless: 86.5% |
| Seasonal Efficiency | Wood: 65.6% / Smokeless: 76.5% |
| Energy Rating | A |
| CO Emissions (13% O₂) | Wood: 0.12% / Smokeless: 0.10% |
| NOx Emissions | Wood: 102 mg/m³ / Smokeless: 111 mg/m³ |
| OGC (CxHy) Emissions | Wood: 118 mg/m³ / Smokeless: 45 mg/m³ |
| Dust (PM) Emissions | Wood: 28 mg/m³ / Smokeless: 16 mg/m³ |
| Flue Gas Temperature | Wood: 282°C / Smokeless: 210°C |
| Flue Outlet | Top & Rear |
| Flue Diameter | 125mm (5") |
| Construction | Steel Body / Cast Iron Door |
| Firebox Lining | Vermiculite |
| Weight | 64kg |

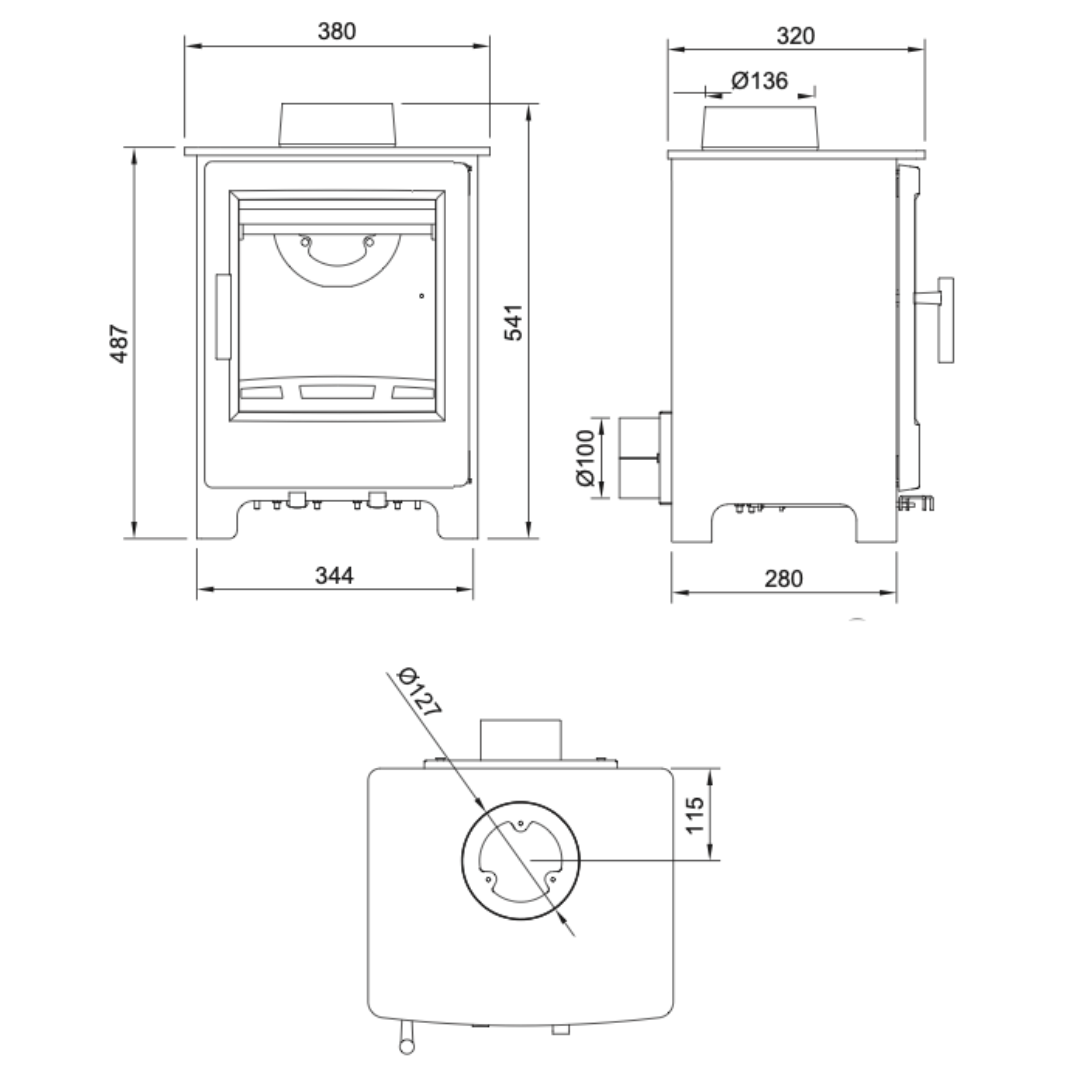

| Dimensions (H x W x D) | 487mm x 380mm x 320mm |
| Air Controls | Primary & Secondary (Slider Control) |
| Airwash System | Yes |
| Direct Air Intake | Yes |
| Test Point Fitted | Yes |
| Standards | BS EN 13240 compliant |
| Warranty | 5 Years (body only, excludes consumables) |
Clearance & Installation
| Distance to Materials | Above | Side | Back |
|---|---|---|---|
| Combustibles | 450mm | 500mm | 600mm |
| Non-Combustibles | 300mm | 75mm | 75mm |
- Minimum hearth depth required: 300mm in front of the stove
A Flexible, Everyday Stove
Combining compact sizing, strong efficiency, and flexible fuel options, the Farrow 5kW is a practical and stylish solution for smaller living spaces without compromising on performance or flame impact.
Optional Flue Kit Includes:
| Flue Kit |
|
