Description
Sleek design. Expansive flame view. High efficiency performance.

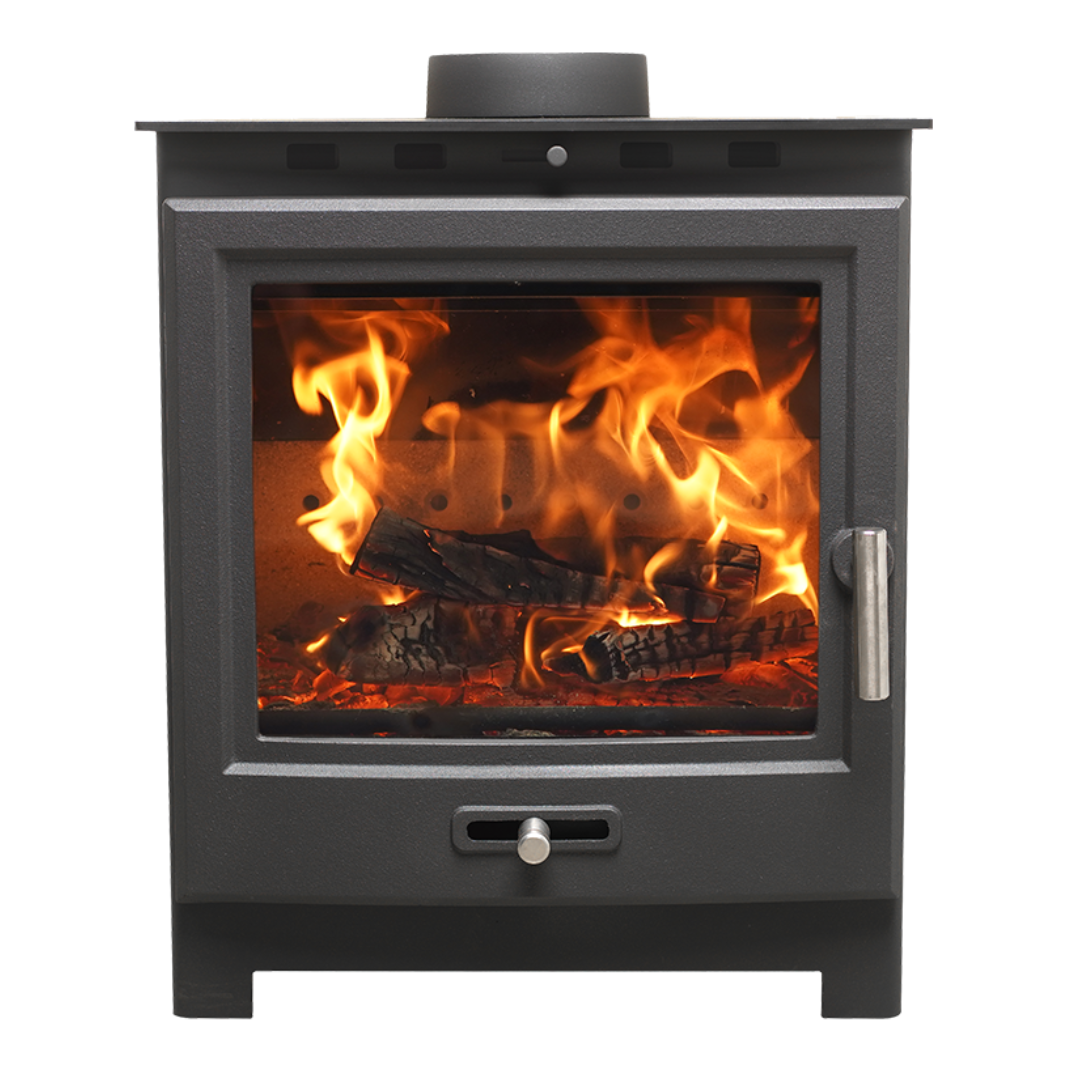

The Oakleaf Handale 5kW Widescreen is a modern, elegantly styled stove designed to deliver both visual impact and efficient heating. Its standout feature is the large portrait viewing window, offering a stunning flame picture and a warm, inviting glow that transforms any living space.
With its clean lines and contemporary finish, the Handale is perfectly suited to modern interiors while still complementing more traditional settings. Built for performance as well as style, it offers excellent efficiency and precise control over combustion.
Key Features
- Contemporary widescreen stove with large portrait viewing window
- Multifuel capability – burns wood and smokeless fuels
- High efficiency of up to 84.9%
- DEFRA approved for cleaner burning
- Airwash system to help keep glass clear
- Primary and secondary air controls for efficient combustion
- Rear heat shield for improved installation flexibility
- Integrated handle for a clean, seamless look
- Top & rear flue outlet options
- Vermiculite lined firebox for improved performance
- Supplied with ash pan and tools
- A energy rating
- Lifetime warranty on stove body
A Wider Flame Experience
The Handale’s portrait widescreen glass creates a striking focal point, allowing you to fully enjoy the movement and depth of the flames. It’s ideal for homeowners who want a stove that delivers both heat and visual presence.
Specification
| Specification | Details |
|---|---|
| Brand | Oakleaf Stoves |
| Model | Handale 5kW Widescreen |
| Fuel Type | Multifuel |
| Nominal Heat Output | 5kW |
| Efficiency | 84.9% |
| Energy Rating | A |
| CO Emissions (13% O₂) | Wood: 0.11% / Smokeless: 0.09% |
| NOx Emissions | Wood: 82 mg/m³ / Smokeless: 129 mg/m³ |
| OGC (CxHy) Emissions | Wood: 98 mg/m³ / Smokeless: 35 mg/m³ |
| Dust (PM) Emissions | Wood: 38 mg/m³ / Smokeless: 24 mg/m³ |
| Flue Gas Temperature | Wood: 242°C / Smokeless: 280°C |
| Flue Outlet | Top & Rear |
| Flue Diameter | 125mm (5") |
| Construction | Steel Body / Cast Iron Door |
| Firebox Lining | Vermiculite |
| Weight | 64kg |

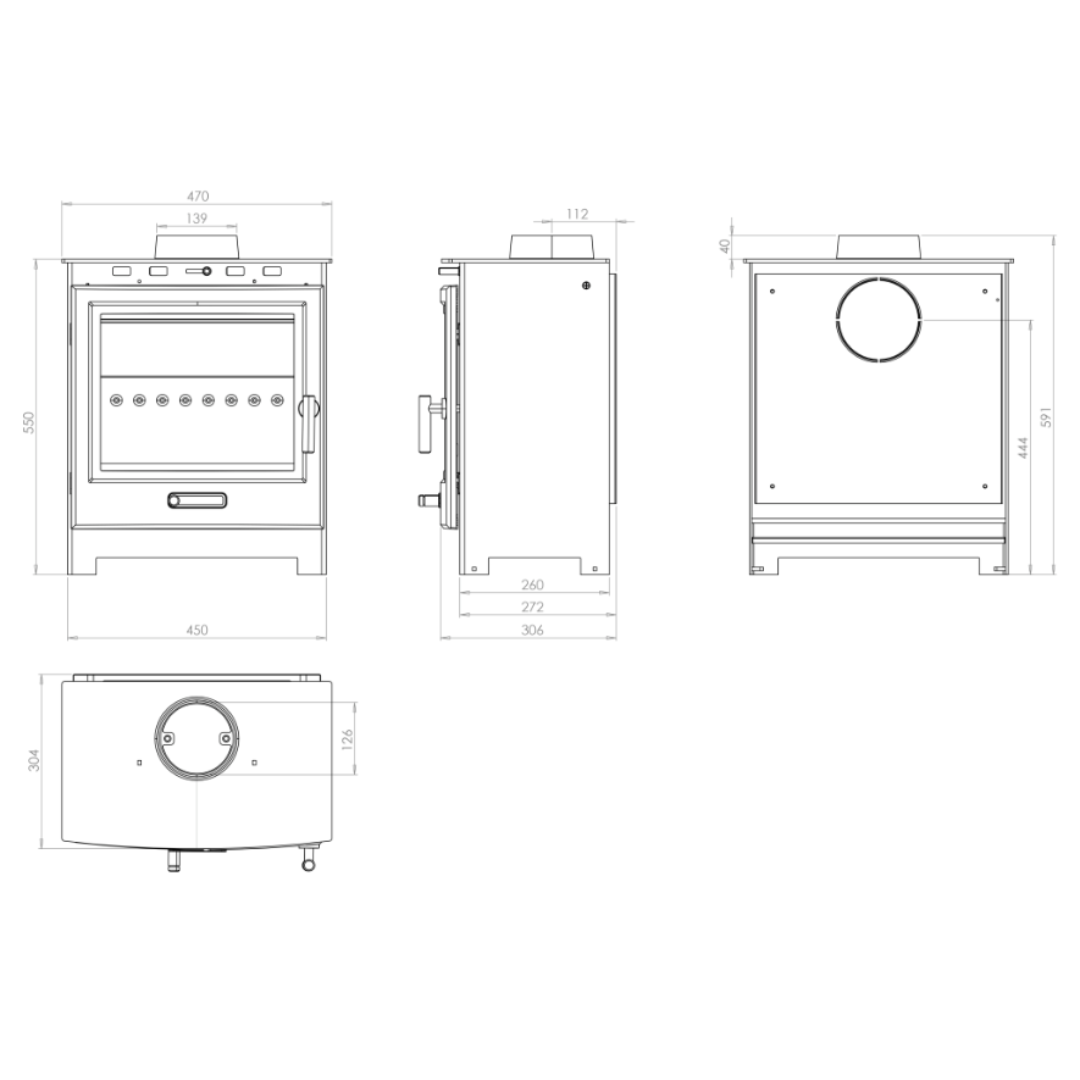

| Dimensions (H x W x D) | 550mm x 470mm x 306mm |
| Air Controls | Primary & Secondary Air |
| Airwash System | Yes |
| Rear Heat Shield | Yes |
| Test Point Fitted | Yes |
| Standards | BS EN 13240 compliant |
| Warranty | Lifetime (body only, excludes consumables) |
Clearance & Installation
|
Distance to Materials |
Above |
Side |
Back |
|---|---|---|---|
|
Combustibles |
600mm |
500mm |
500mm |
|
Non-Combustibles |
100mm |
100mm |
100mm |
Built for Modern Living
Combining high efficiency, sleek styling, and a large flame display, the Handale 5kW Widescreen is perfect for those who want a stove that looks as good as it performs.
Optional Flue Kit Includes:
| Flue Kit |
|
