Description
Elegant design. Powerful efficiency. Striking flame display.

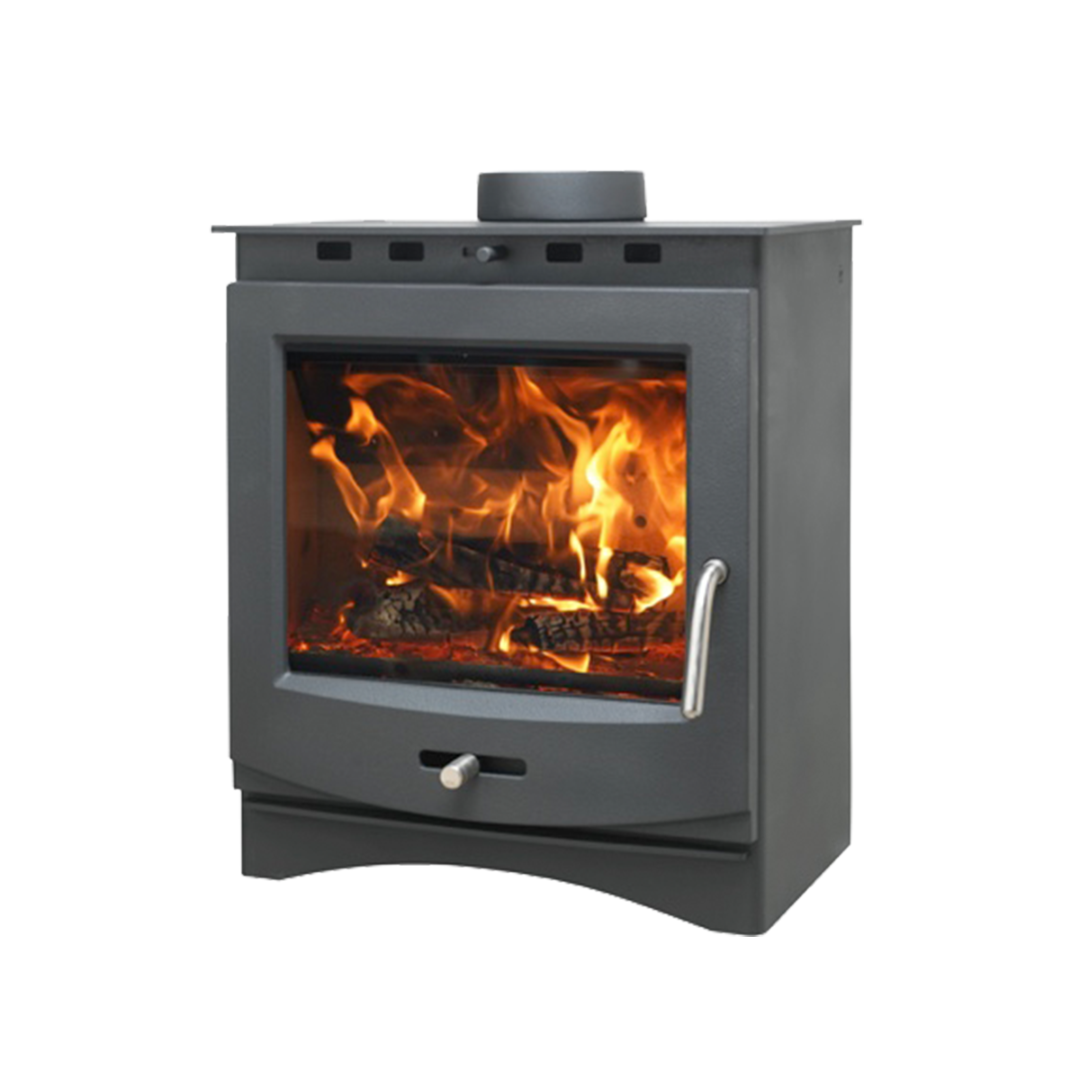

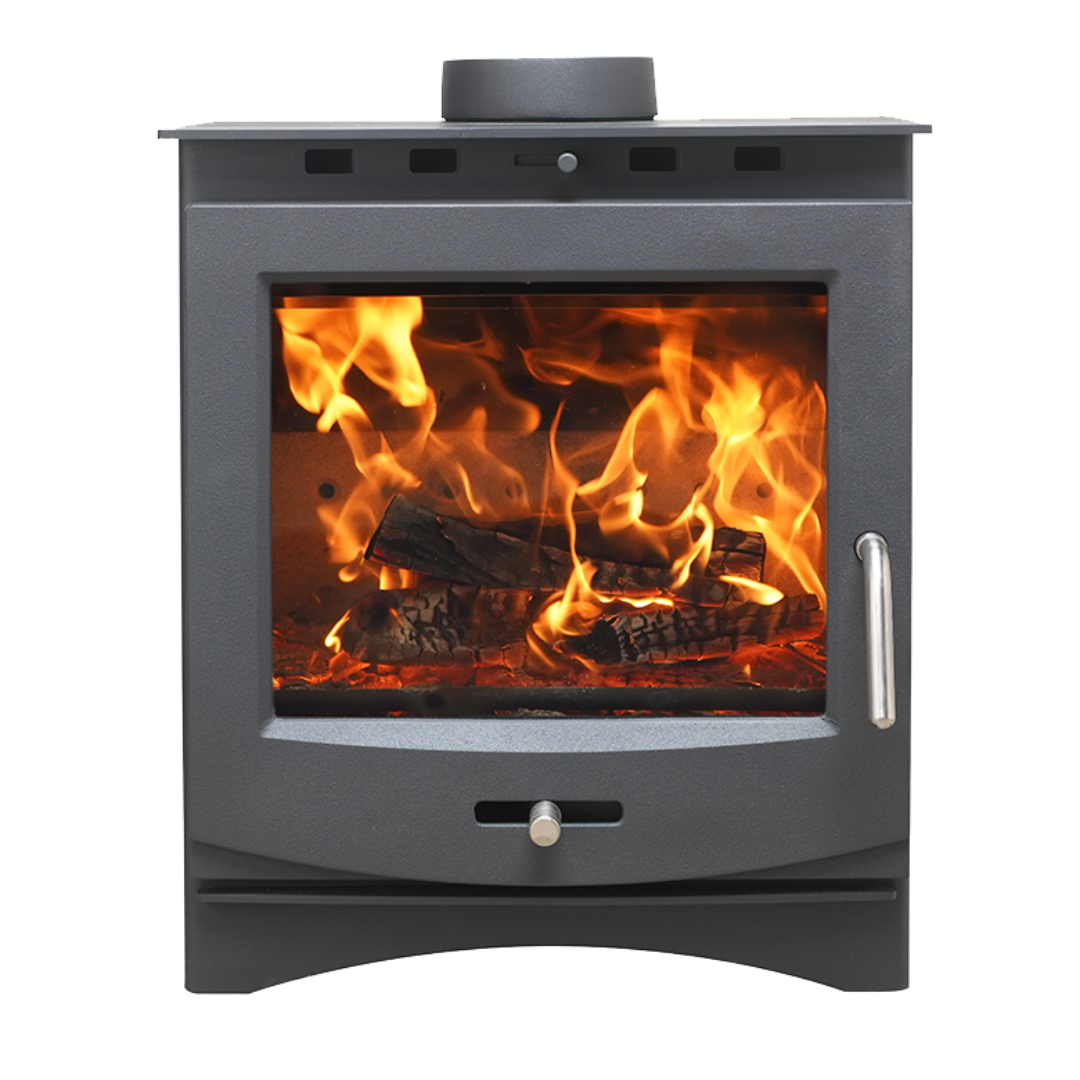

The Oakleaf Langley 5kW Widescreen is a refined, eco design multifuel stove that combines modern styling with high-performance heating. Designed to deliver both warmth and visual impact, its large glass viewing window creates a stunning flame picture that enhances any living space.
With its clean lines, integrated handle, and widescreen format, the Langley offers a sophisticated look while maintaining the durability and reliability expected from the Oakleaf range.
Key Features
- Contemporary widescreen stove with large viewing window
- Multifuel capability – burns wood and smokeless fuels
- High efficiency of up to 84.9%
- DEFRA approved for smoke control areas
- Built-in airwash system for cleaner glass
- Primary and secondary air controls for precise combustion
- Rear heat shield for flexible installation
- Integrated handle for a seamless finish
- Top & rear flue outlet options
- Vermiculite lined firebox for improved efficiency
- Supplied with ash pan and tools
- A energy rating
- Lifetime warranty on stove body
Designed to Impress
The Langley’s widescreen glass provides an expansive view of the flames, making it a true focal point. Its balanced proportions and modern aesthetic allow it to fit effortlessly into both contemporary and traditional interiors.
Specification
| Specification | Details |
|---|---|
| Brand | Oakleaf Stoves |
| Model | Langley 5kW Widescreen |
| Fuel Type | Wood / Smokeless Fuels |
| Nominal Heat Output | 5.0kW |
| Efficiency | Wood: 84.9% / Smokeless: 80.6% |
| Energy Rating | A |
| CO Emissions (13% O₂) | Wood: 0.11% / Smokeless: 0.09% |
| NOx Emissions | Wood: 82 mg/m³ / Smokeless: 129 mg/m³ |
| OGC (CxHy) Emissions | Wood: 98 mg/m³ / Smokeless: 35 mg/m³ |
| Dust (PM) Emissions | Wood: 38 mg/m³ / Smokeless: 24 mg/m³ |
| Flue Gas Temperature | Wood: 242°C / Smokeless: 280°C |
| Flue Outlet | Top & Rear |
| Flue Diameter | 125mm (5") |
| Construction | Steel Body / Cast Iron Door |
| Firebox Lining | Vermiculite |

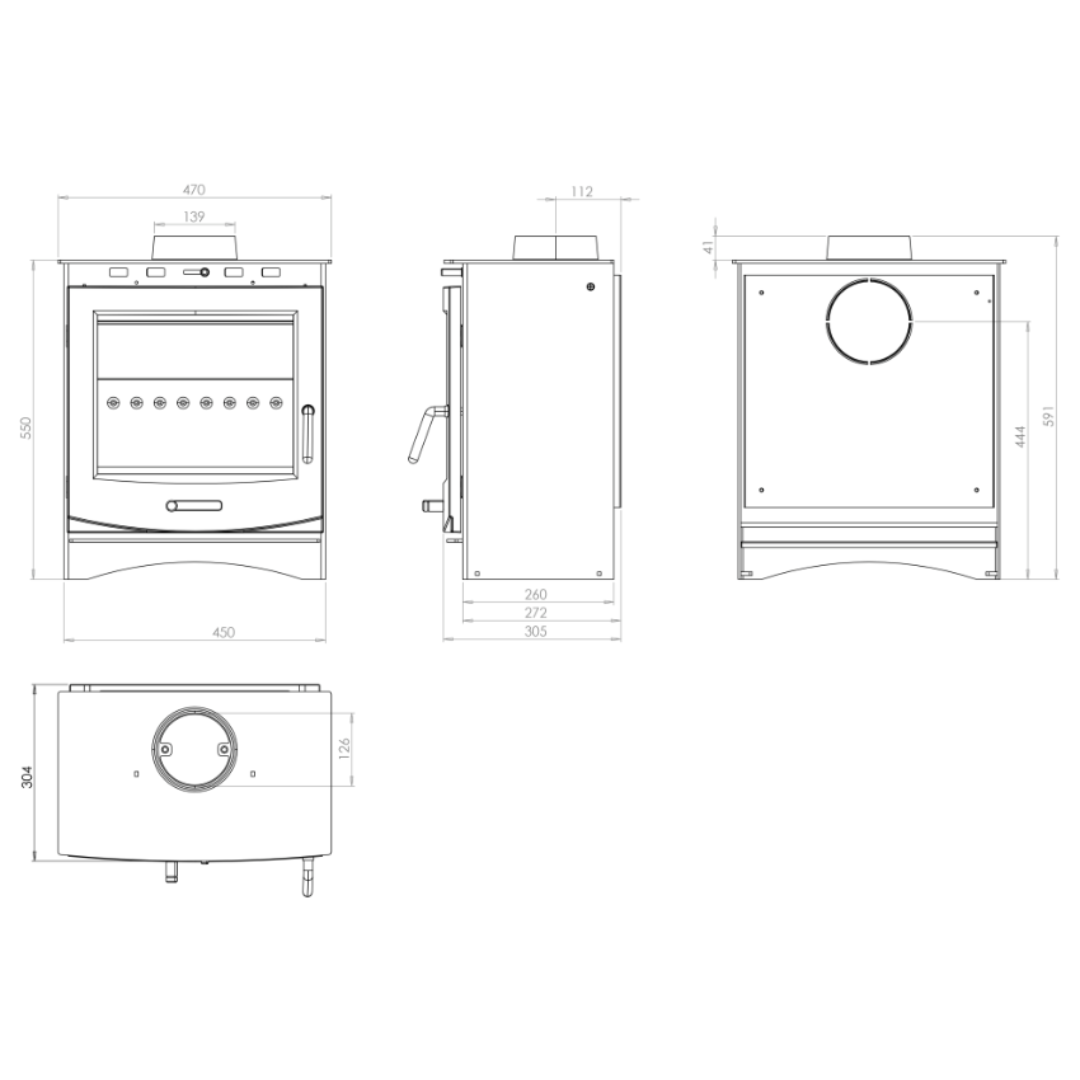

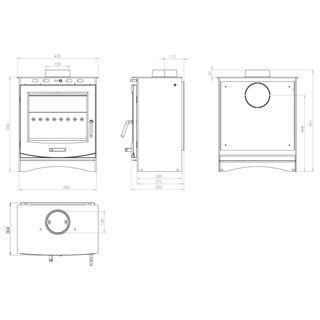

| Dimensions (H x W x D) | 550mm x 470mm x 304mm |
| Air Controls | Primary & Secondary Air |
| Airwash System | Yes |
| Rear Heat Shield | Yes |
| Test Point Fitted | Yes |
| Standards | BS EN 13240 compliant |
| Warranty | Lifetime (body only, excludes consumables) |
Clearance & Installation
|
Distance to Materials |
Above |
Side |
Back |
|---|---|---|---|
|
Combustibles |
600mm |
500mm |
500mm |
|
Non-Combustibles |
100mm |
100mm |
100mm |
Built for Efficiency & Comfort
With its excellent efficiency and clean-burning performance, the Langley is designed to provide reliable, cost-effective heating while meeting modern environmental standards.
A Modern Statement Stove
Combining sleek widescreen styling, advanced performance, and long-lasting build quality, the Oakleaf Langley 5kW Widescreen is an ideal choice for homeowners looking to elevate both the look and comfort of their space.
Optional Flue Kit Includes:
| Flue Kit |
|
