Description

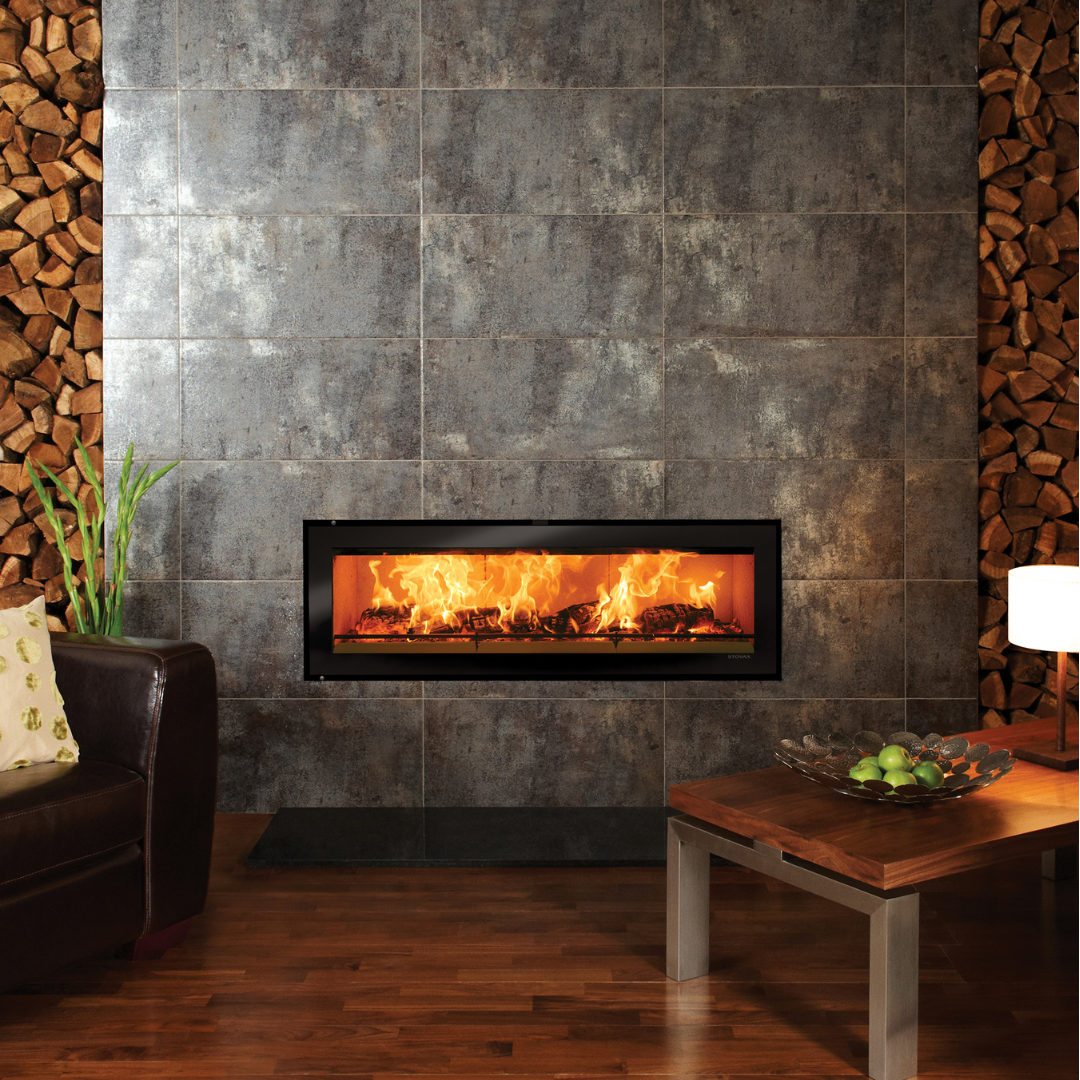

The Stovax Studio 3 Inset is the largest model in the Studio range, delivering exceptional flame visuals and commanding heating performance for larger interiors.
With a substantial nominal 12.6kW heat output, the Studio 3 is perfectly suited to open-plan spaces and larger rooms where both warmth and architectural impact are key.
Key Features
- Fuel type: Wood burning
- Heat output: 12.6kW (range 3.8–16.0kW)
- Efficiency: 76.1%
- Energy rating: A
- Ecodesign compliant
- Cleanburn technology for efficient, lower-emission combustion
- Airwash system for clearer flame visuals
- TCL high-density thermal lining system
- Convected and radiant heat
- Single air control for responsive operation
- External air facility available
- Optional warm air ducting kits to heat up to four additional rooms
- Optional 10° angled flue outlet
- Maximum log length: 500mm (20”)
- Flue outlet: 153mm (6”)
Design & Performance
The Studio 3 creates a truly dramatic focal point with its expansive landscape firebox and uninterrupted flame view. Built for larger installations, it combines bold proportions with advanced combustion performance, delivering powerful heating while maintaining high efficiency.
Unlike the smaller Studio models, the Studio 3 features a downward-opening door, helping to minimise the risk of ash falling beyond the hearth during refuelling.
Frame & Styling Options

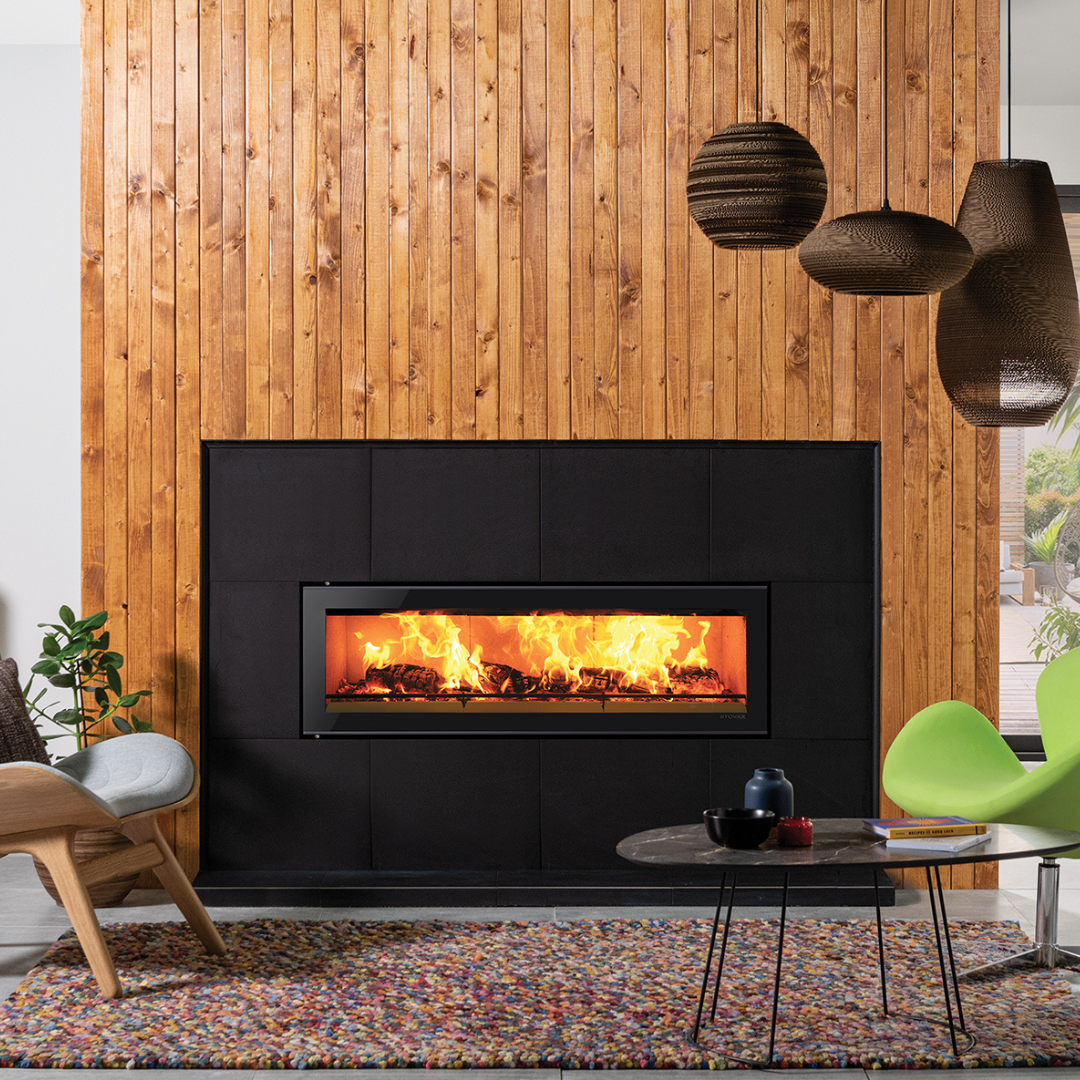

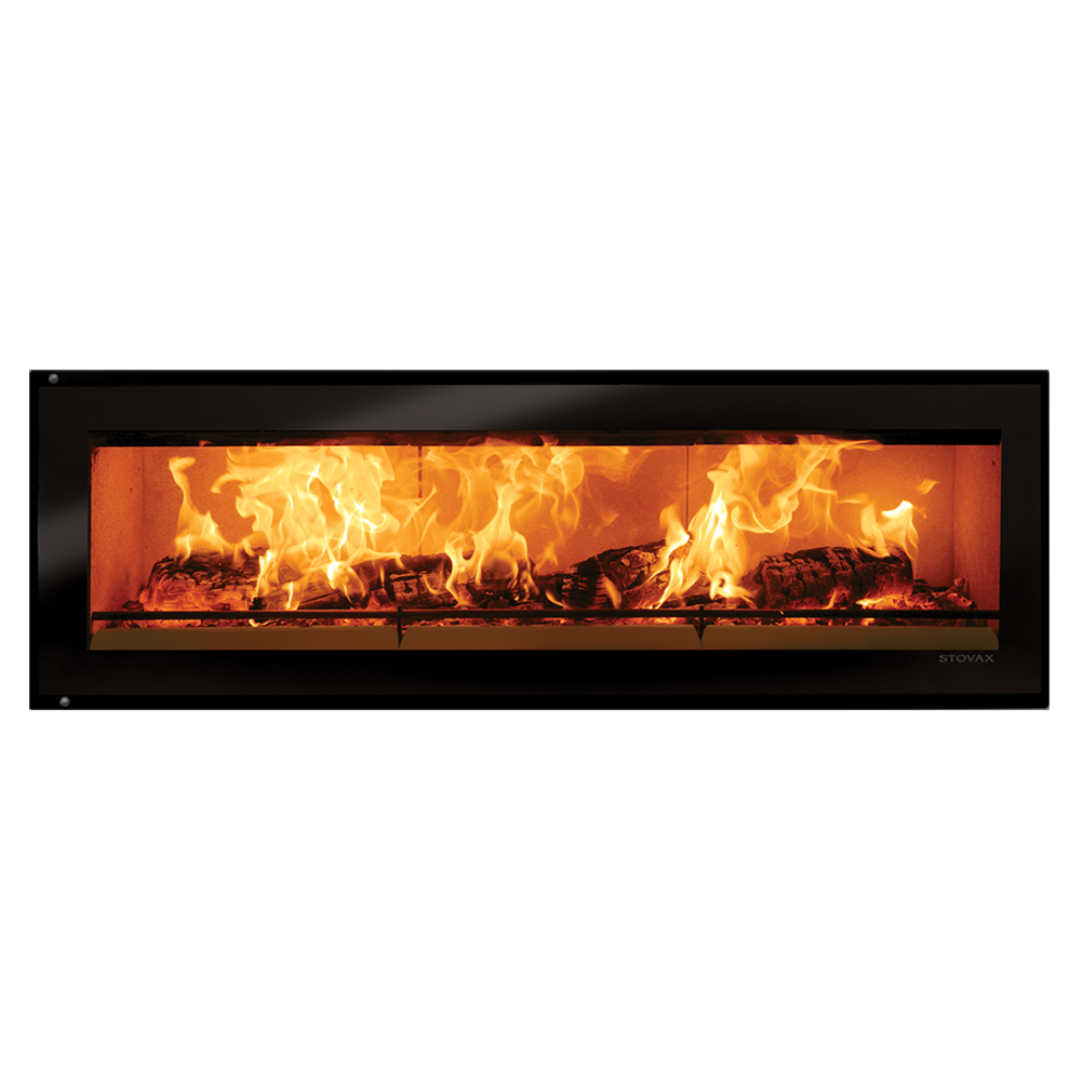

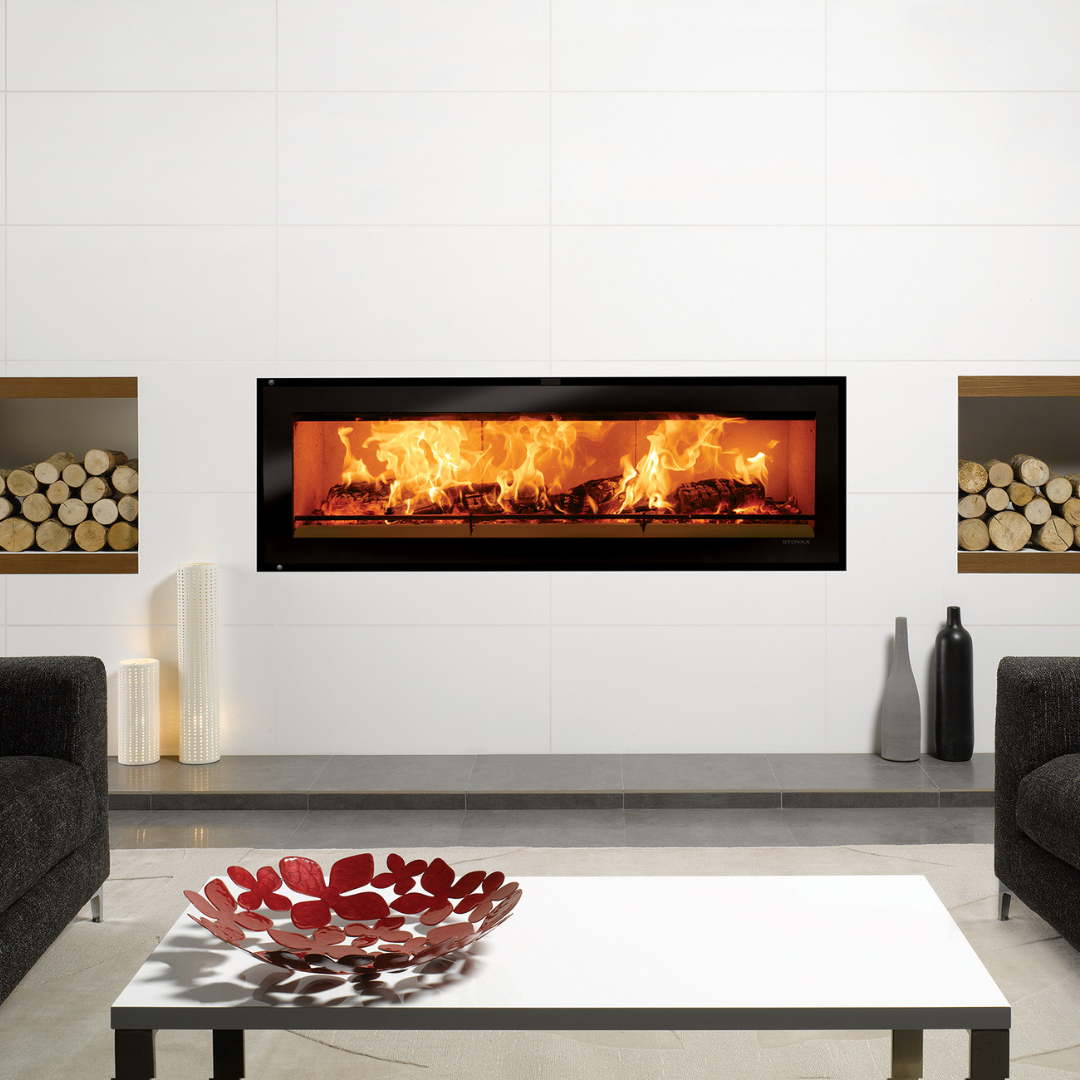

- Edge – frameless contemporary finish

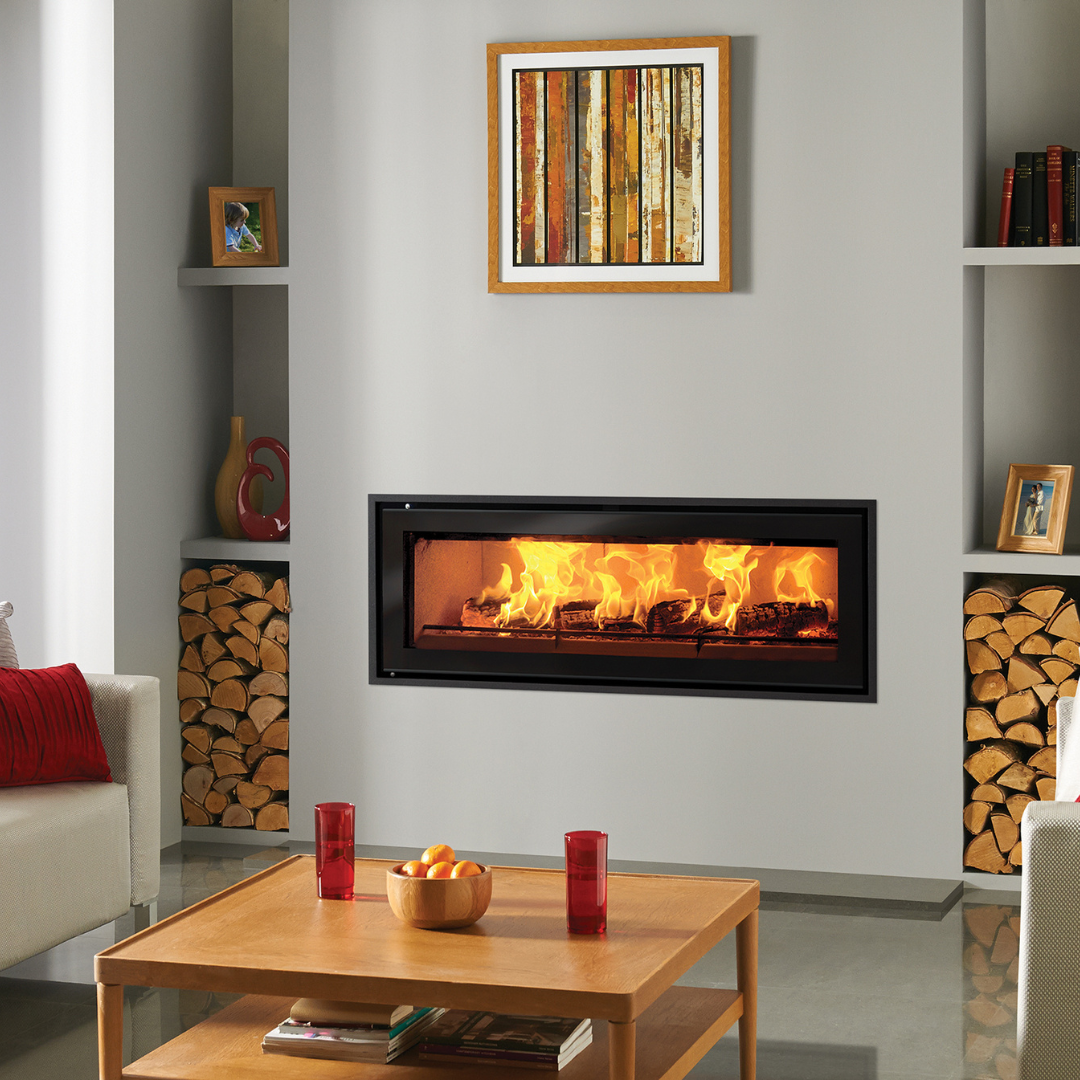

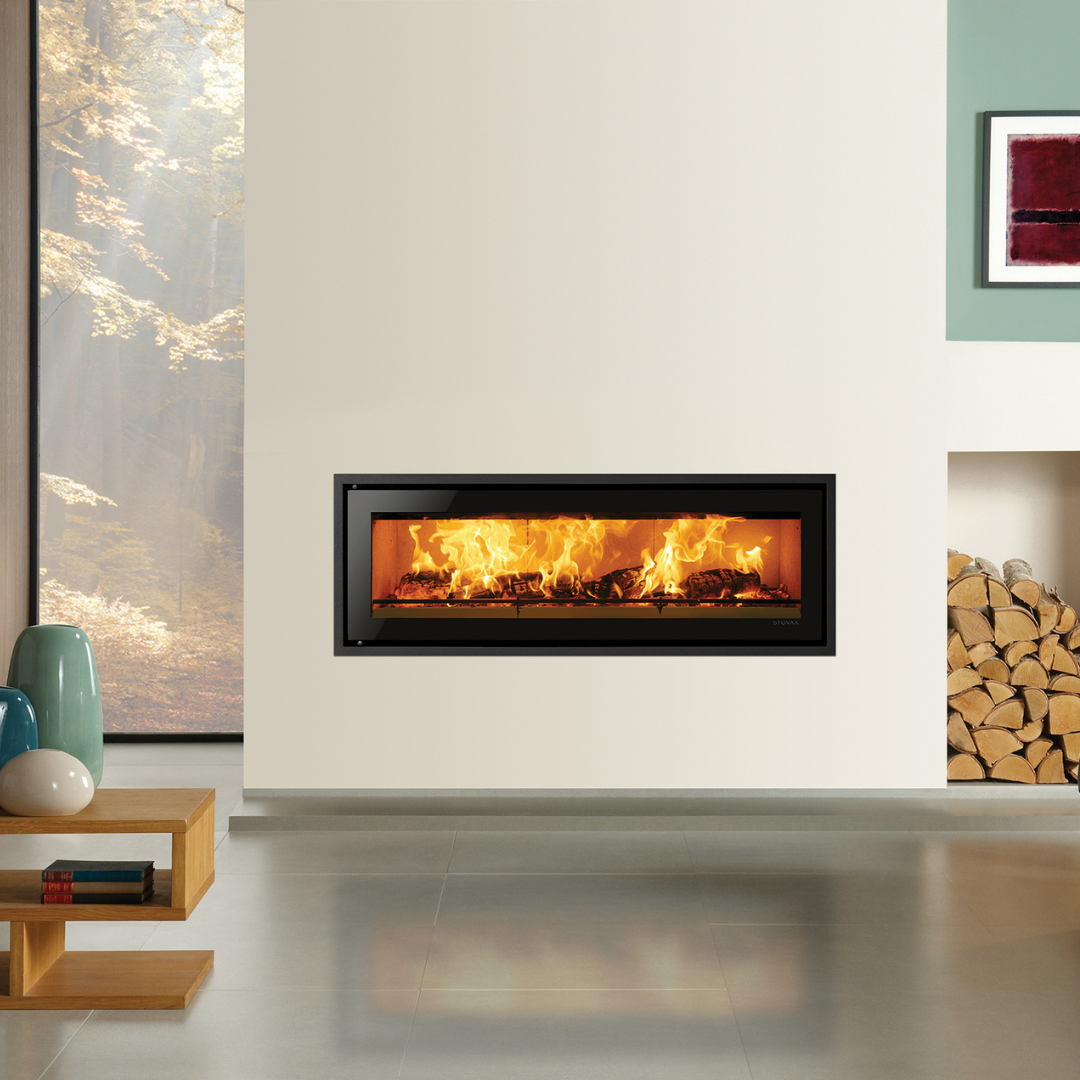

- Edge+ – slim finishing frame

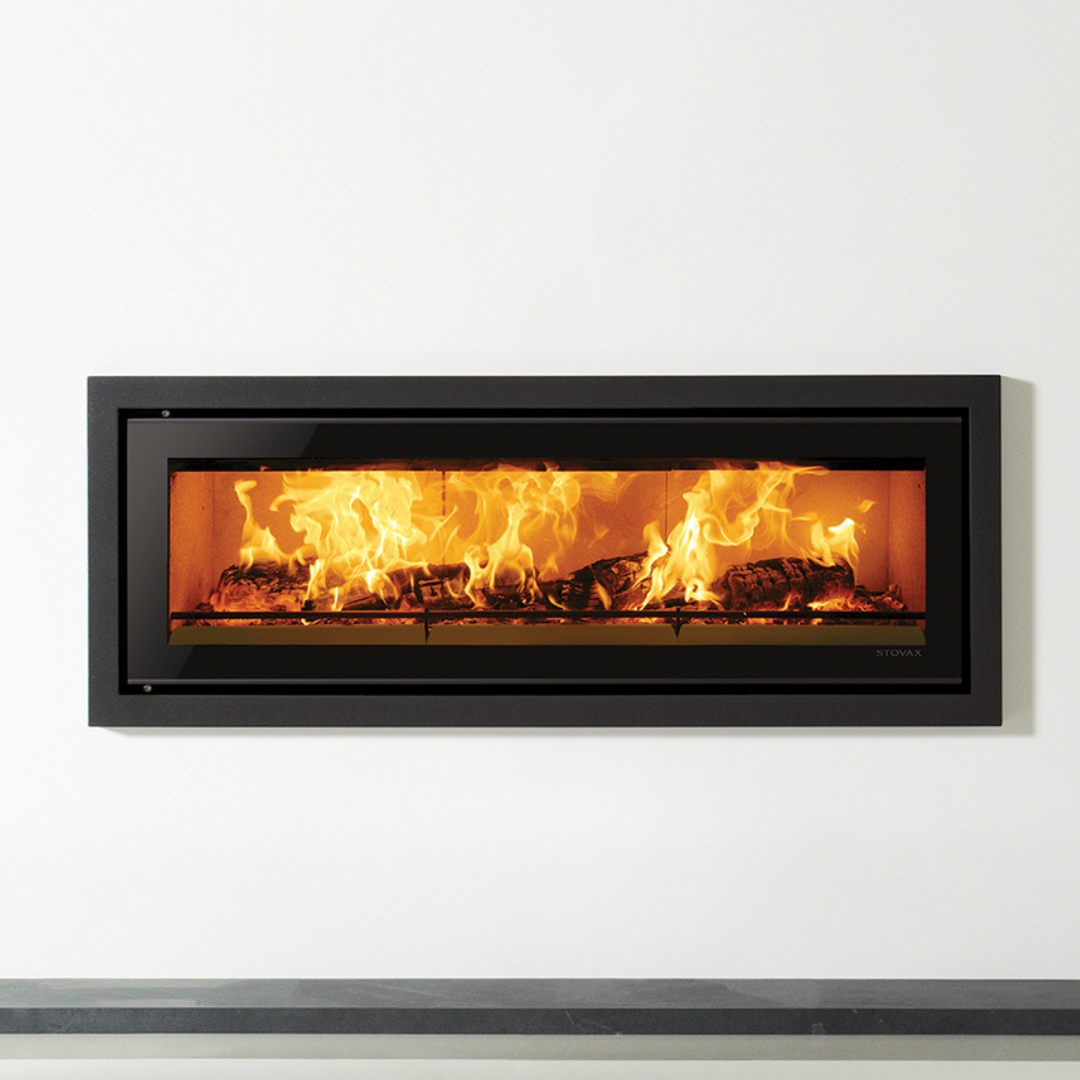

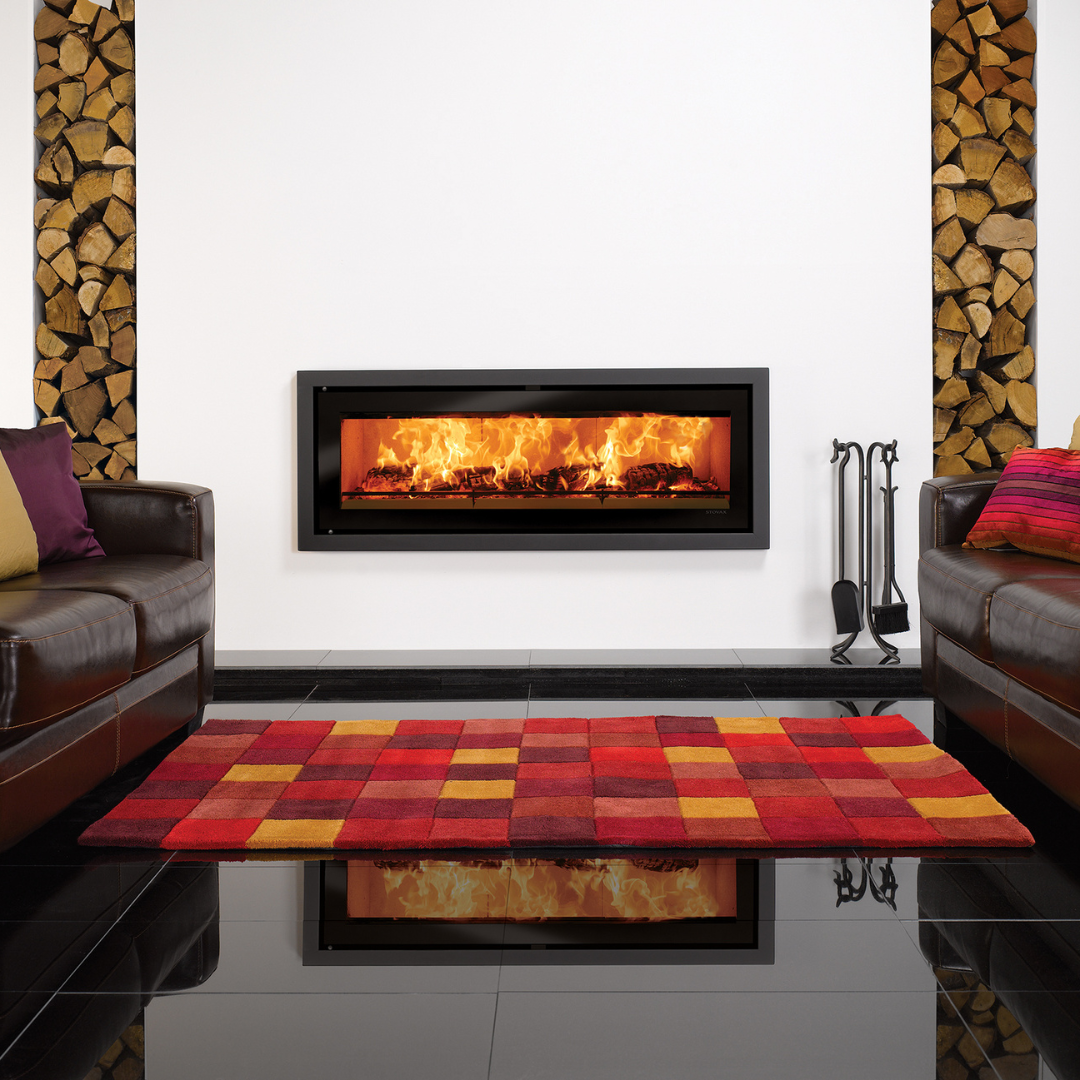

- Profil – classic framed surround
- Steel – wide metallic statement frame

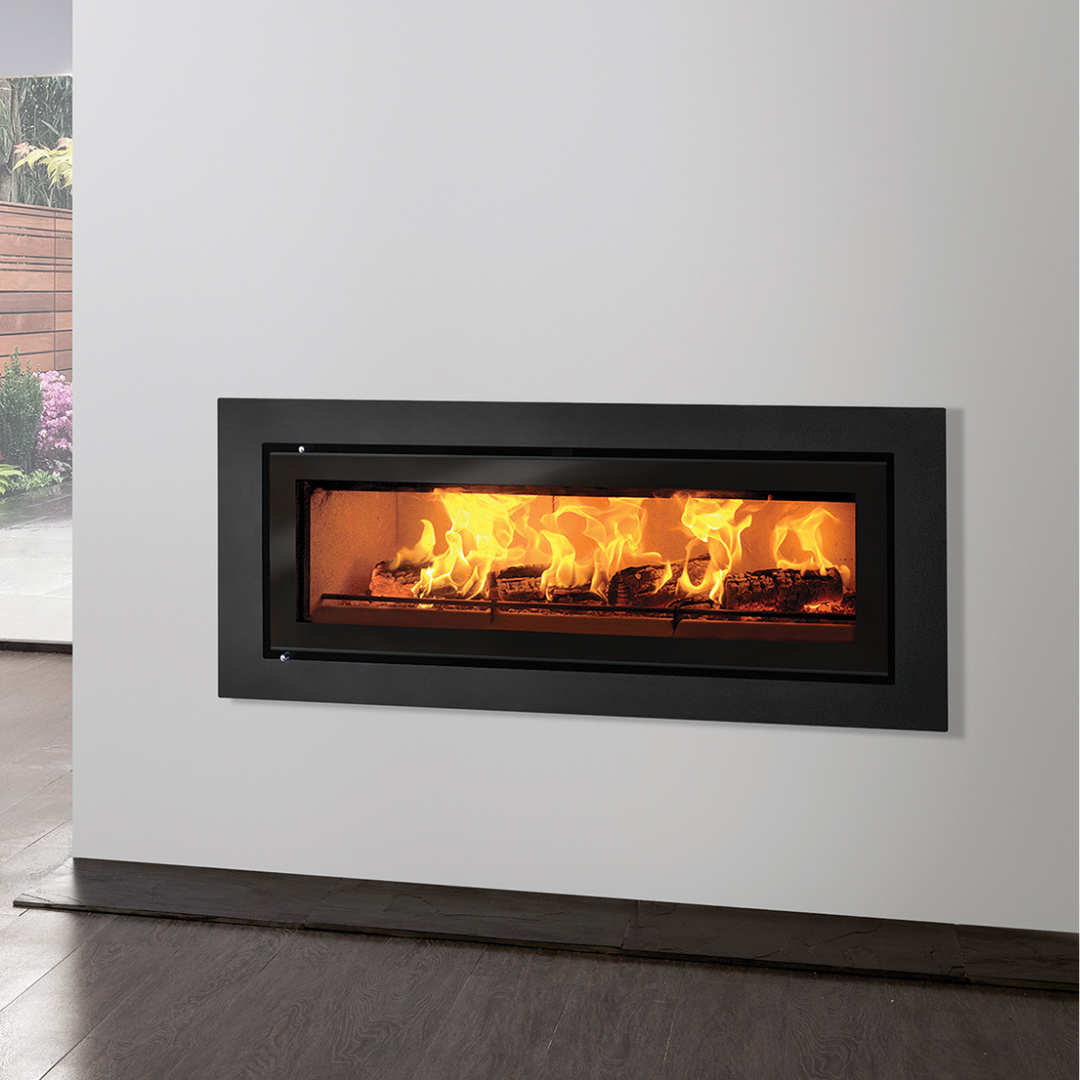

- Steel XS – more compact steel surround option
Optional Extras
- External air kit
- Warm air ducting kits for multi-room heating
- 10° angled flue outlet
- Choice of cassette frames for different installation styles
Fire Dimensions
| Width | Height | Depth |
|---|---|---|
| 1332mm | 450mm | 393mm |
Frame Dimensions
| Width | Height | Frame Depth | Off-wall Depth | |
|
Profil - Metallic Black |
1426 | 547 | 3345 | - |
| Steel - Metallic Black | 1926 | 647 | 3 | 48 |
| Steel XS - Metallic Black | 1518 | 647 | 3 | 48 |
| Edge Kit | 1480 | 597 | 44.5* | - |
| Edge 'Cool Wall' Kit | 1480 | 613 | 70** | - |
| Edge+ Kit | 1480 | 603 | 34*# | - |
* Once installed, Edge kits are flush with the finished wall surface.
**Once installed, Edge 'Cool Wall' Kits are recessed 28mm (Studio 1 & 2) or 12mm (Studio 3) from the finished surface.
#Depth is adjustable between 32mm and 52mm between Edge+ frame and kit when fitted.
