Description

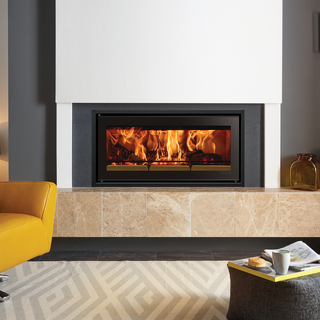

The Stovax Studio 2 Inset is designed for larger rooms, offering a broad flame picture and powerful heat output within a sleek, contemporary cassette fire.
With a nominal 8.5kW heat output, the Studio 2 is ideal for spacious living areas and open-plan interiors, delivering both strong visual impact and efficient wood burning performance.
Key Features
- Fuel type: Wood burning
- Heat output: 8.5kW (range 2.8–11.0kW)
- Efficiency: 76.3%
- Energy rating: A
- Ecodesign compliant
- DEFRA exempt – approved for use in smoke control areas
- Cleanburn technology for efficient combustion
- Airwash system for a cleaner view of the flames
- TCL high-density thermal lining system
- Convected and radiant heat
- Single air control for easy flame adjustment
- External air facility available
- Optional warm air ducting kit
- Optional 10° angled flue outlet
- Maximum log length: 400mm (16”)
- Flue outlet: 153mm (6”)
Design & Performance
The Studio 2’s wider proportions create a dramatic focal point, while its advanced Cleanburn system ensures impressive efficiency and reduced emissions. Airwash airflow helps keep the large glass panel clear, allowing the flame visuals to remain the centre of attention.
This model is especially well-suited to modern spaces where both heat output and visual presence are important.

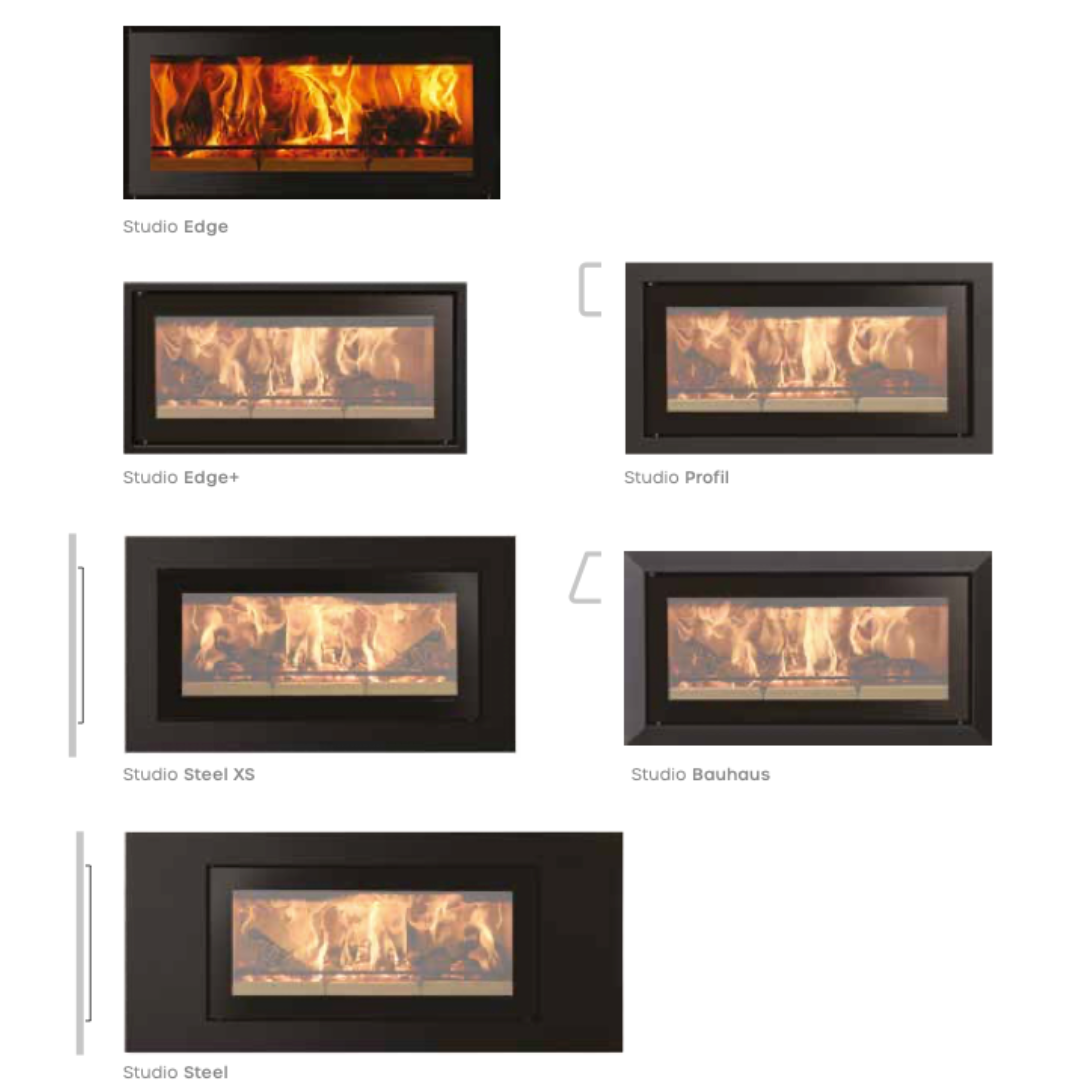

Frame & Styling Options

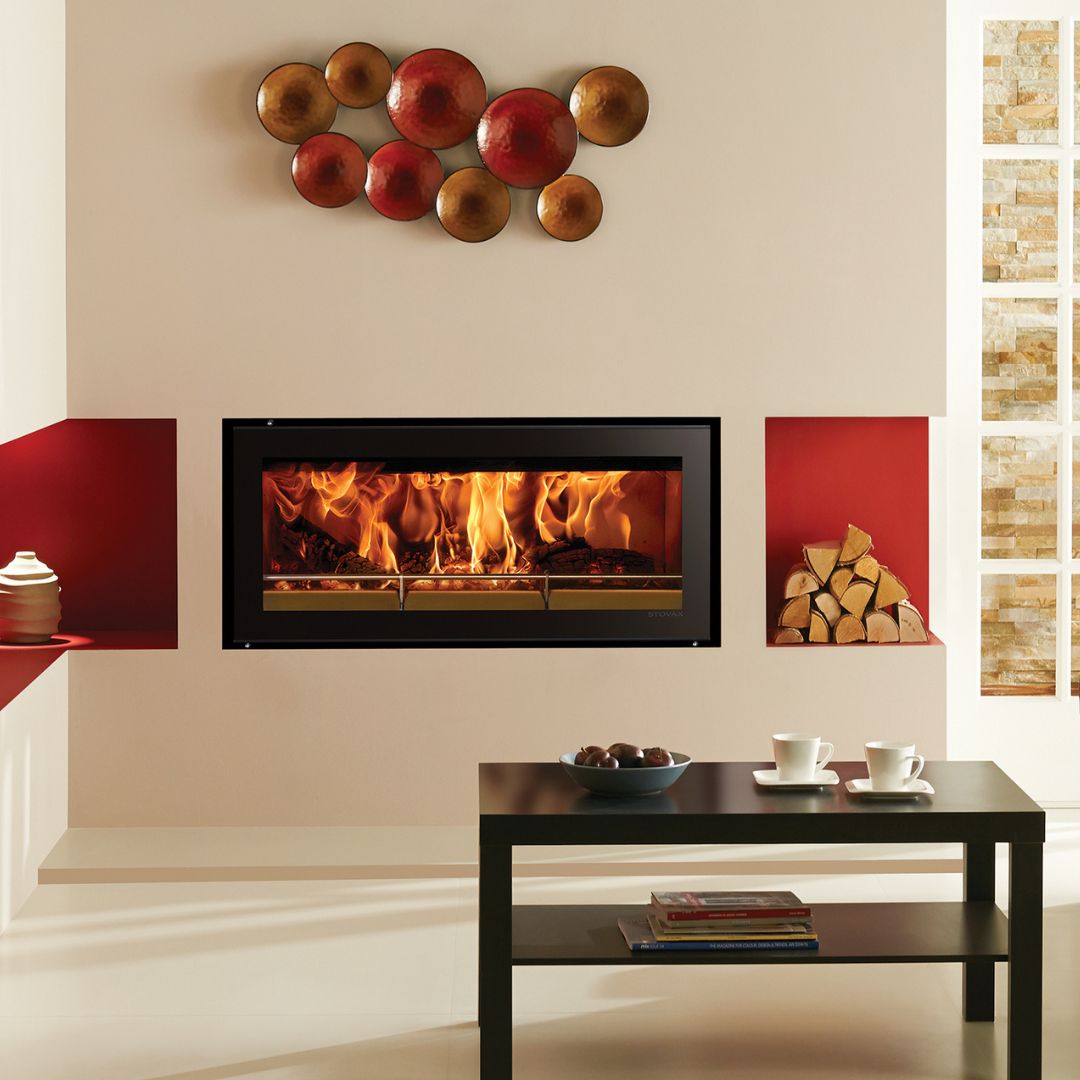

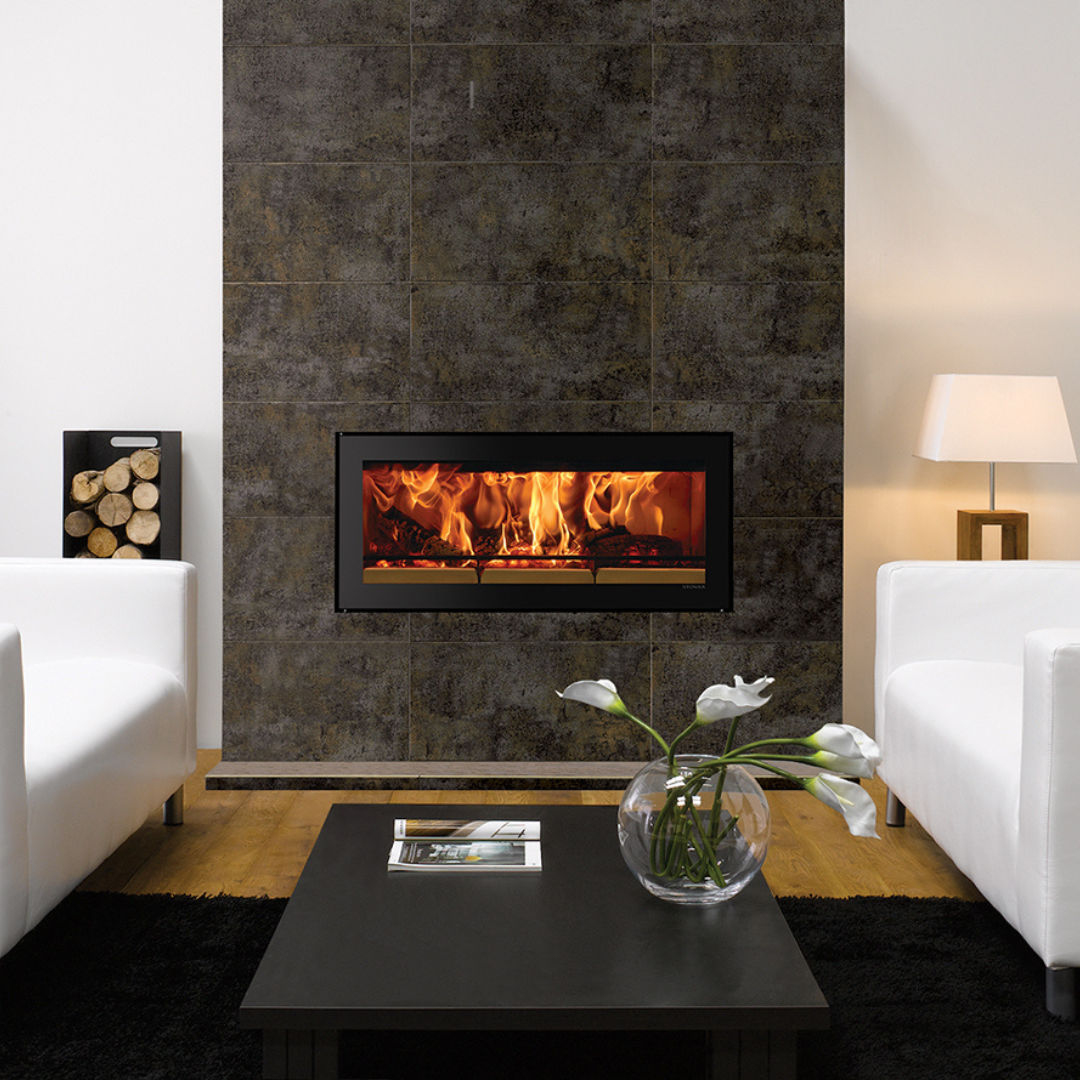

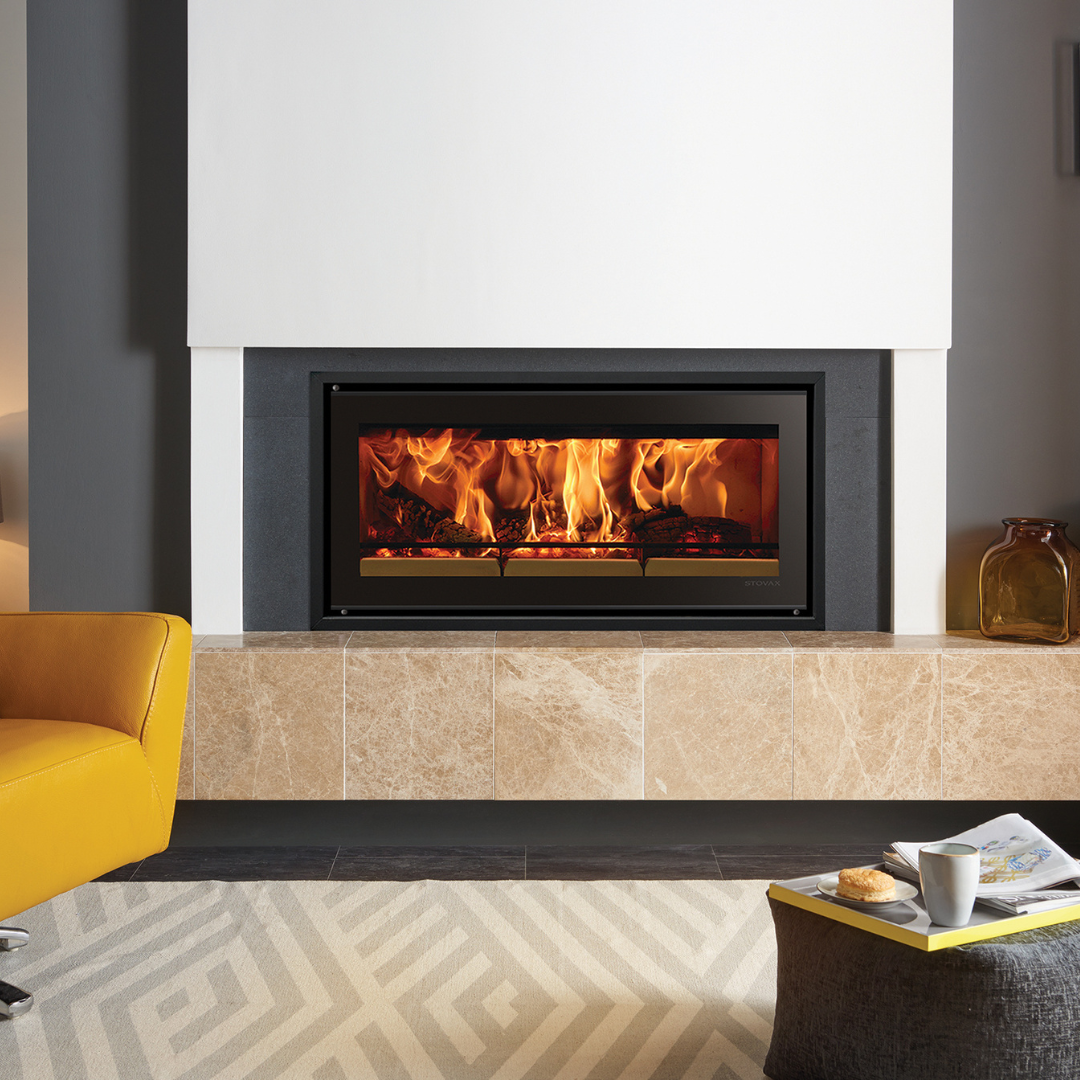

- Edge – minimalist frameless finish
- Edge+ – slim and practical finishing frame

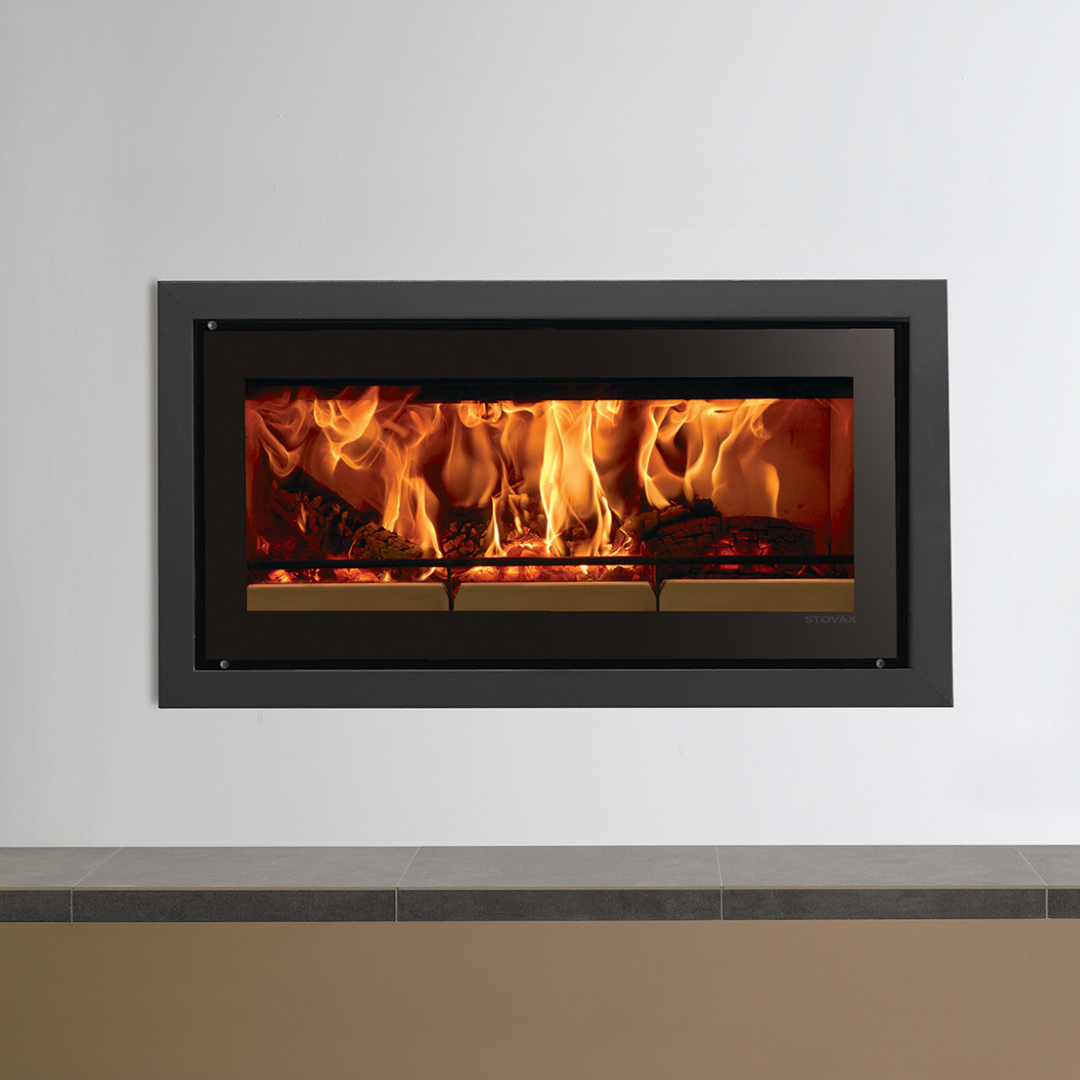

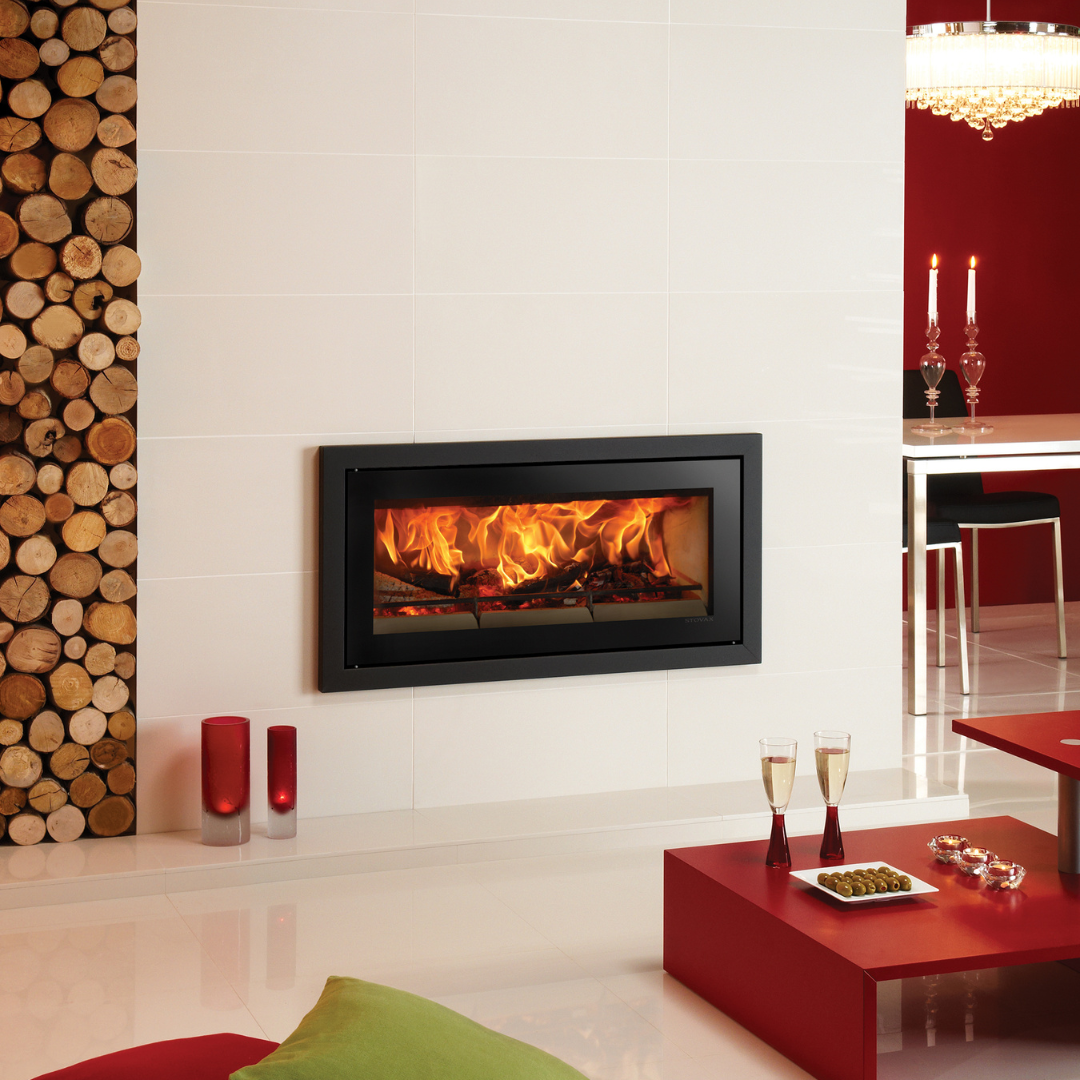

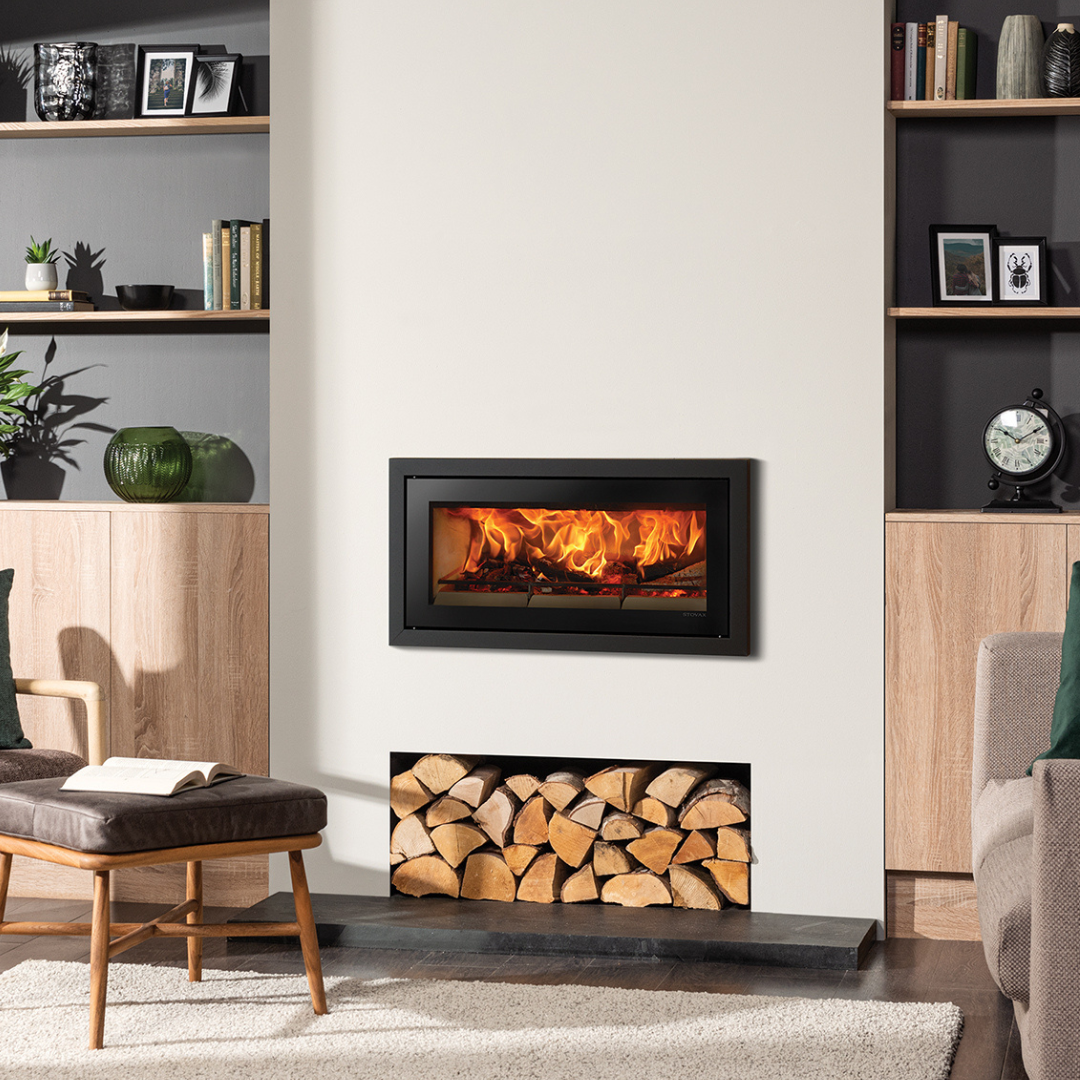

- Profil – classic framed styling

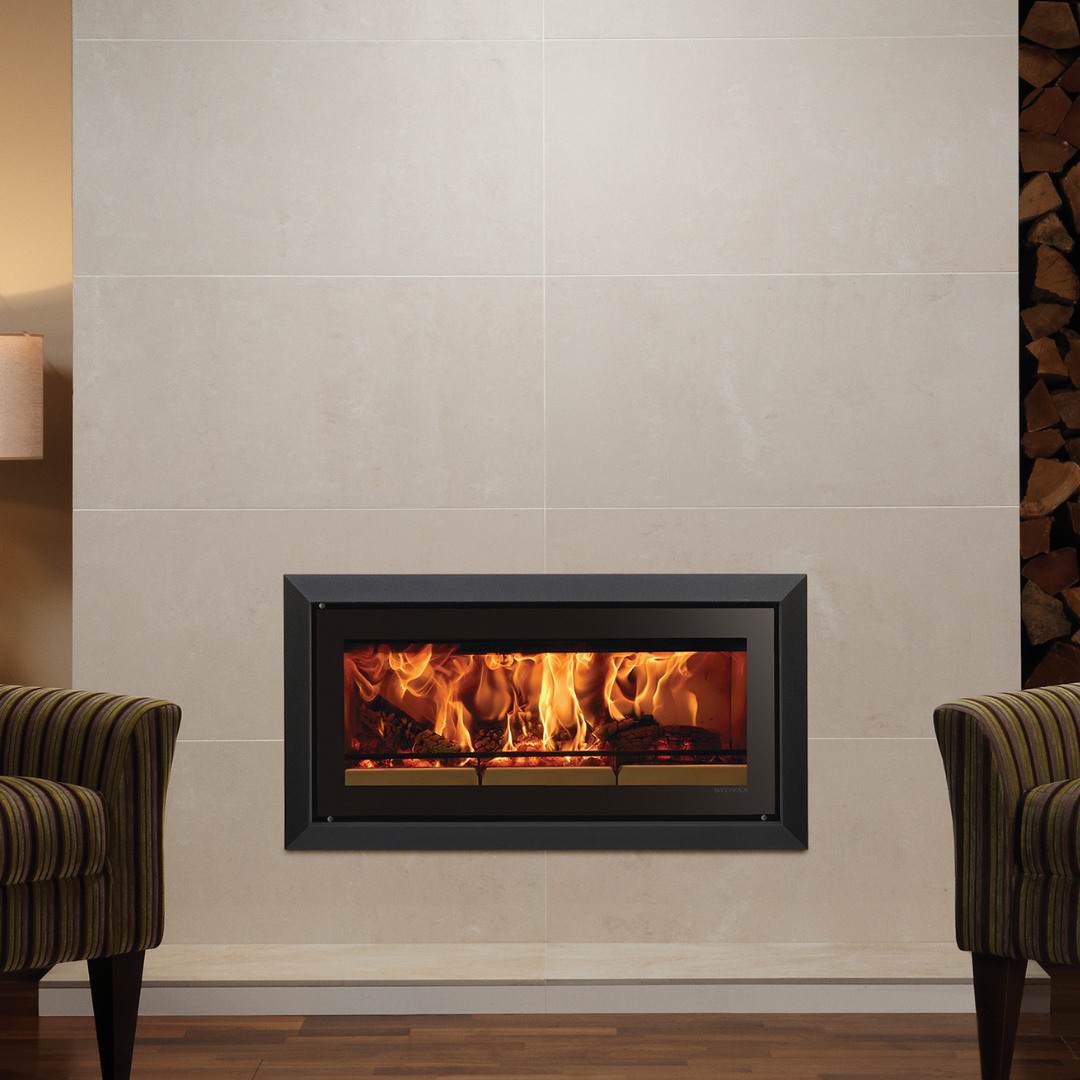

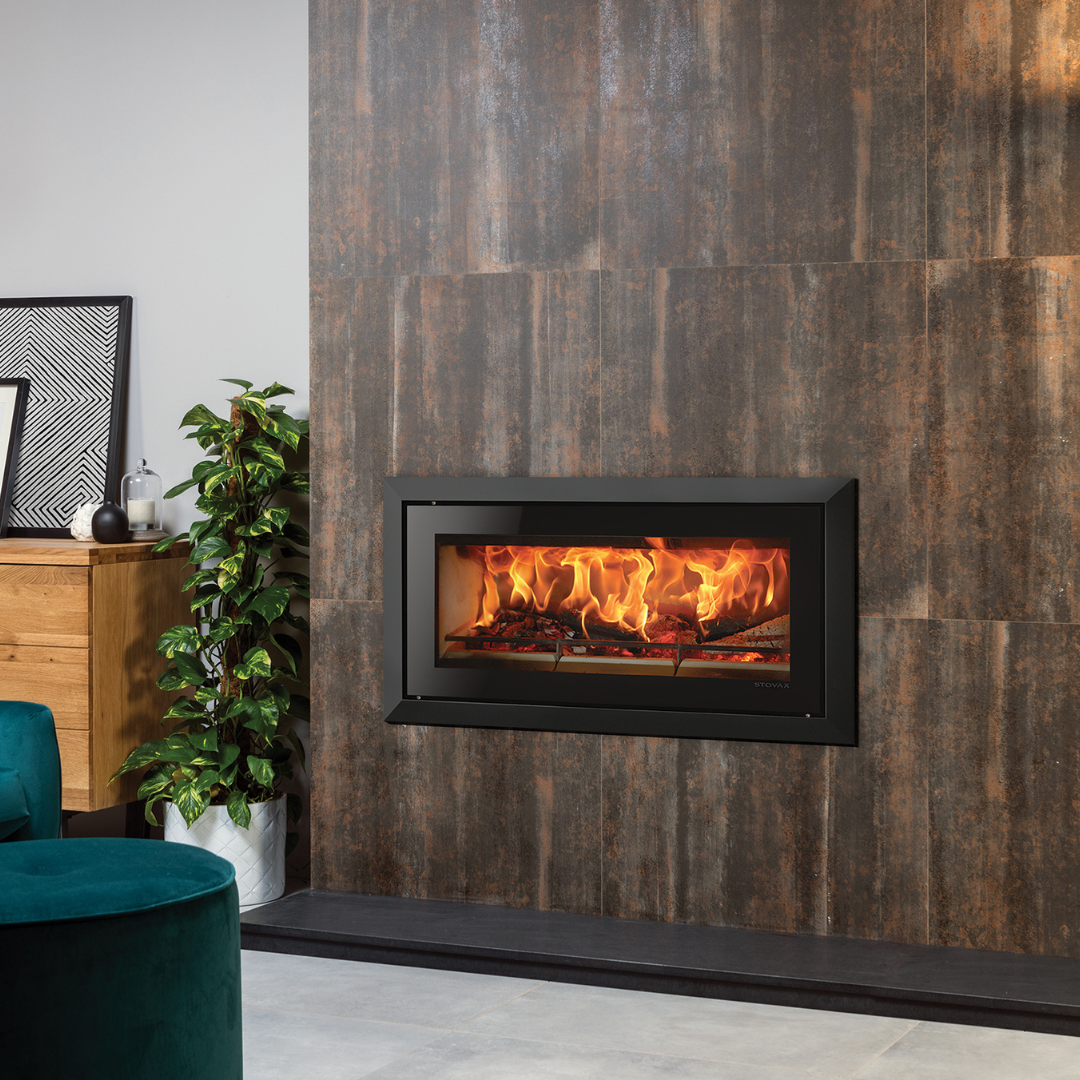

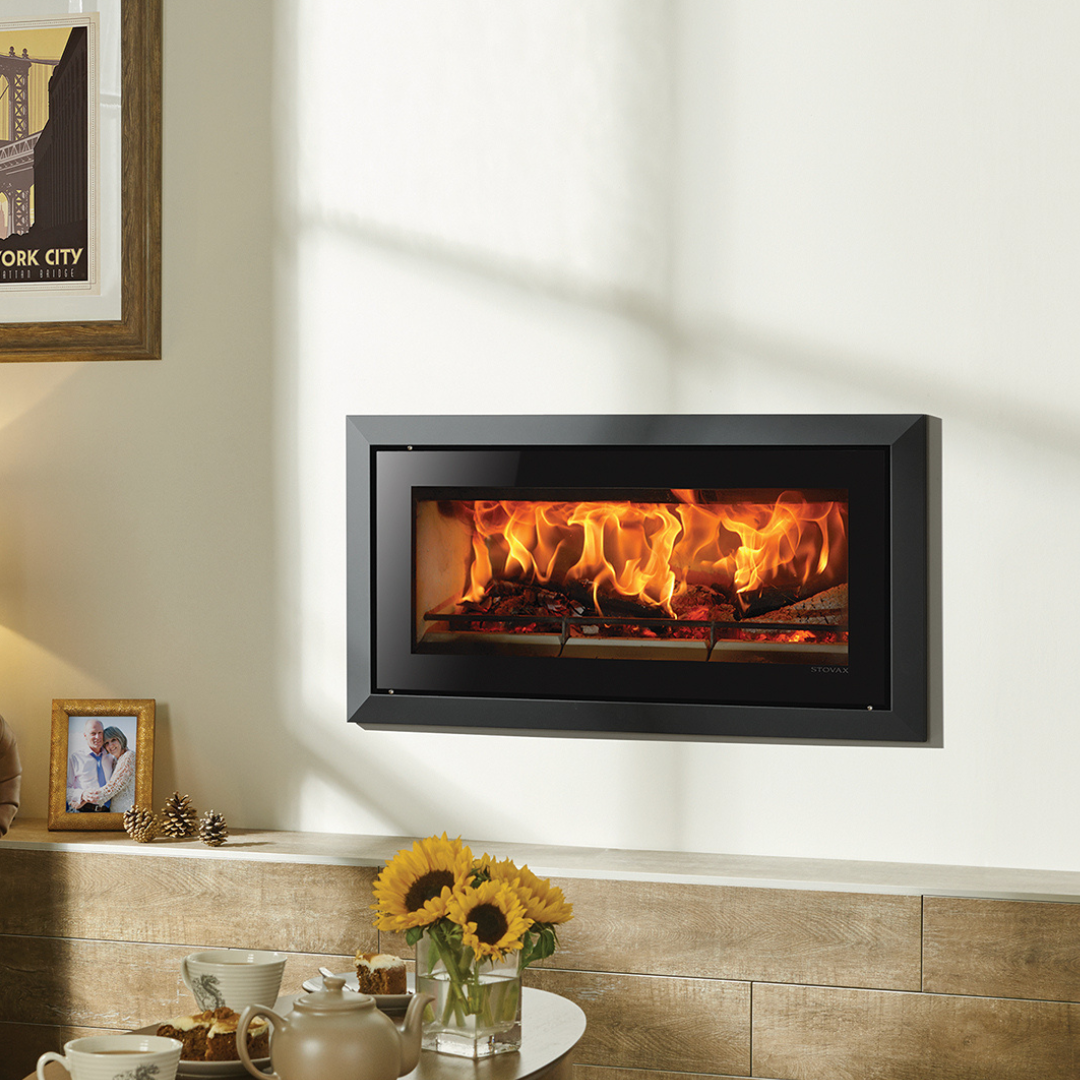

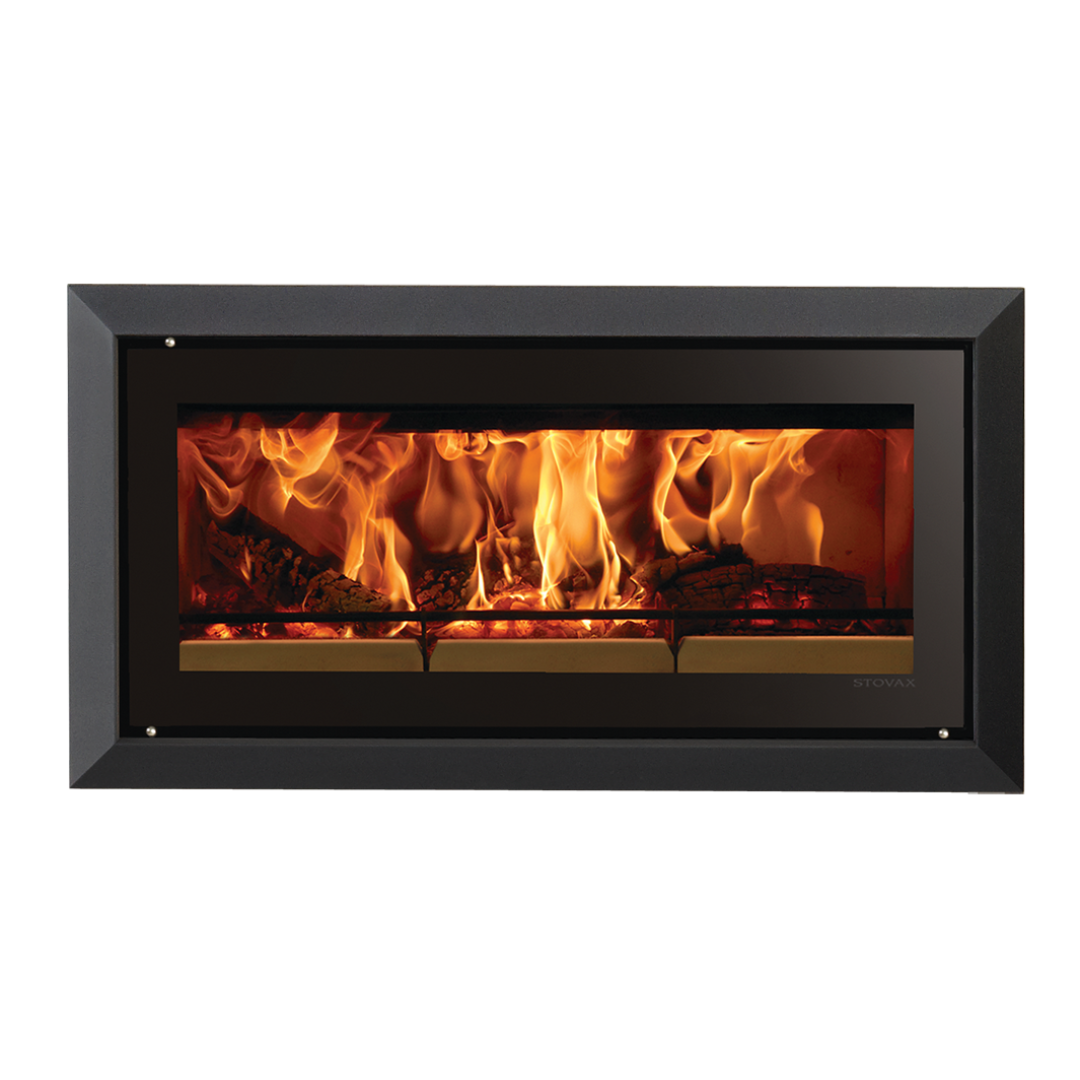

- Bauhaus – distinctive tapered surround

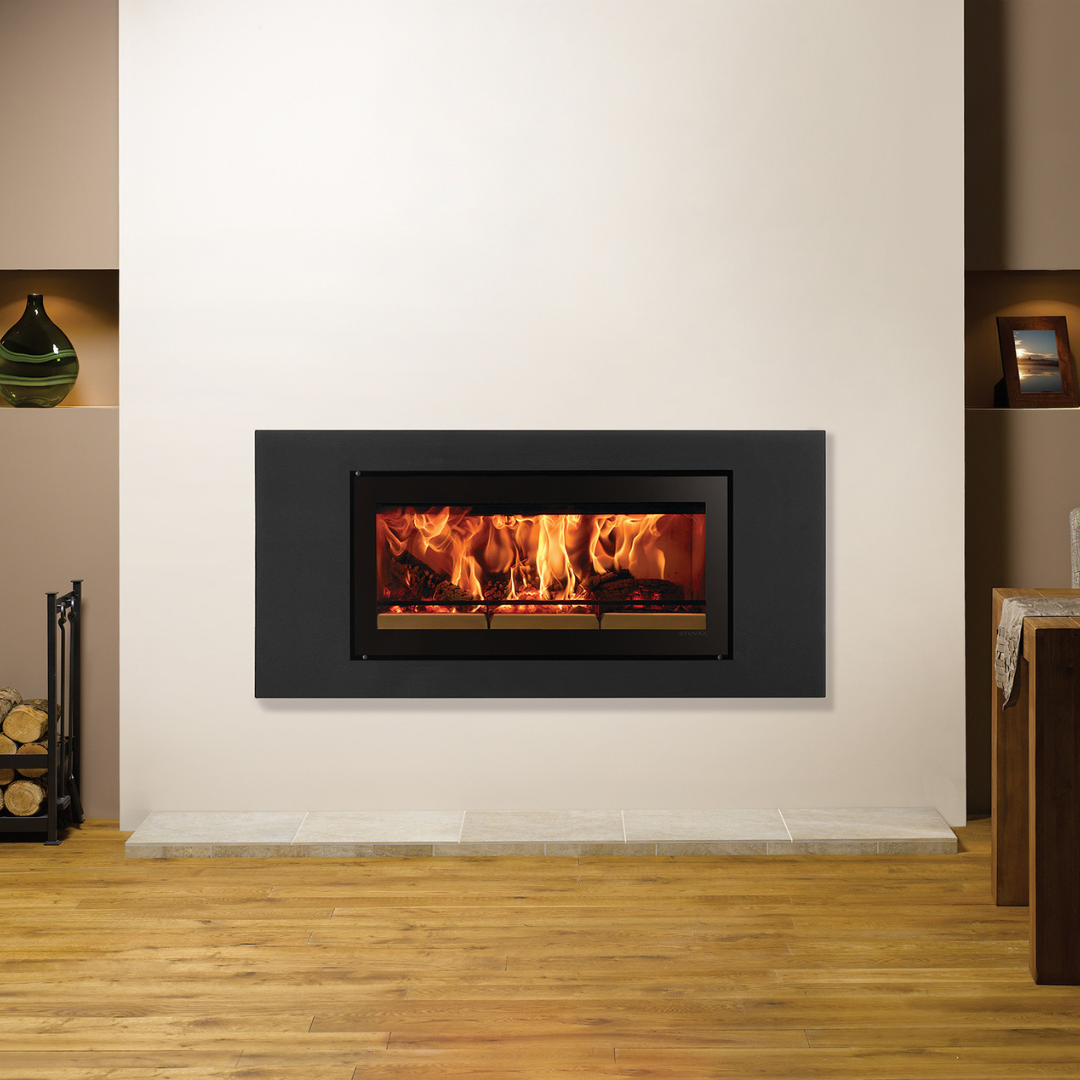

- Steel – bold metallic statement frame

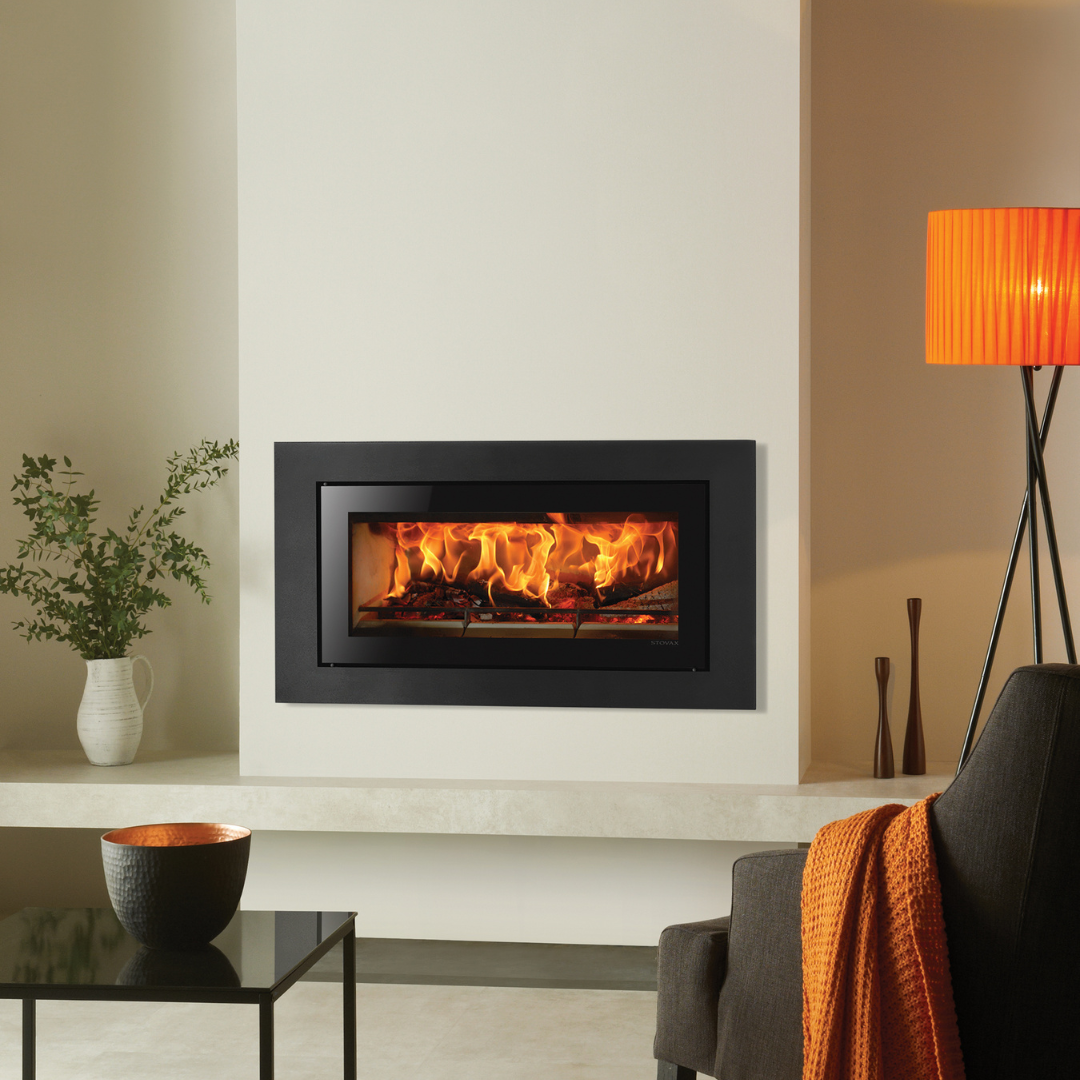

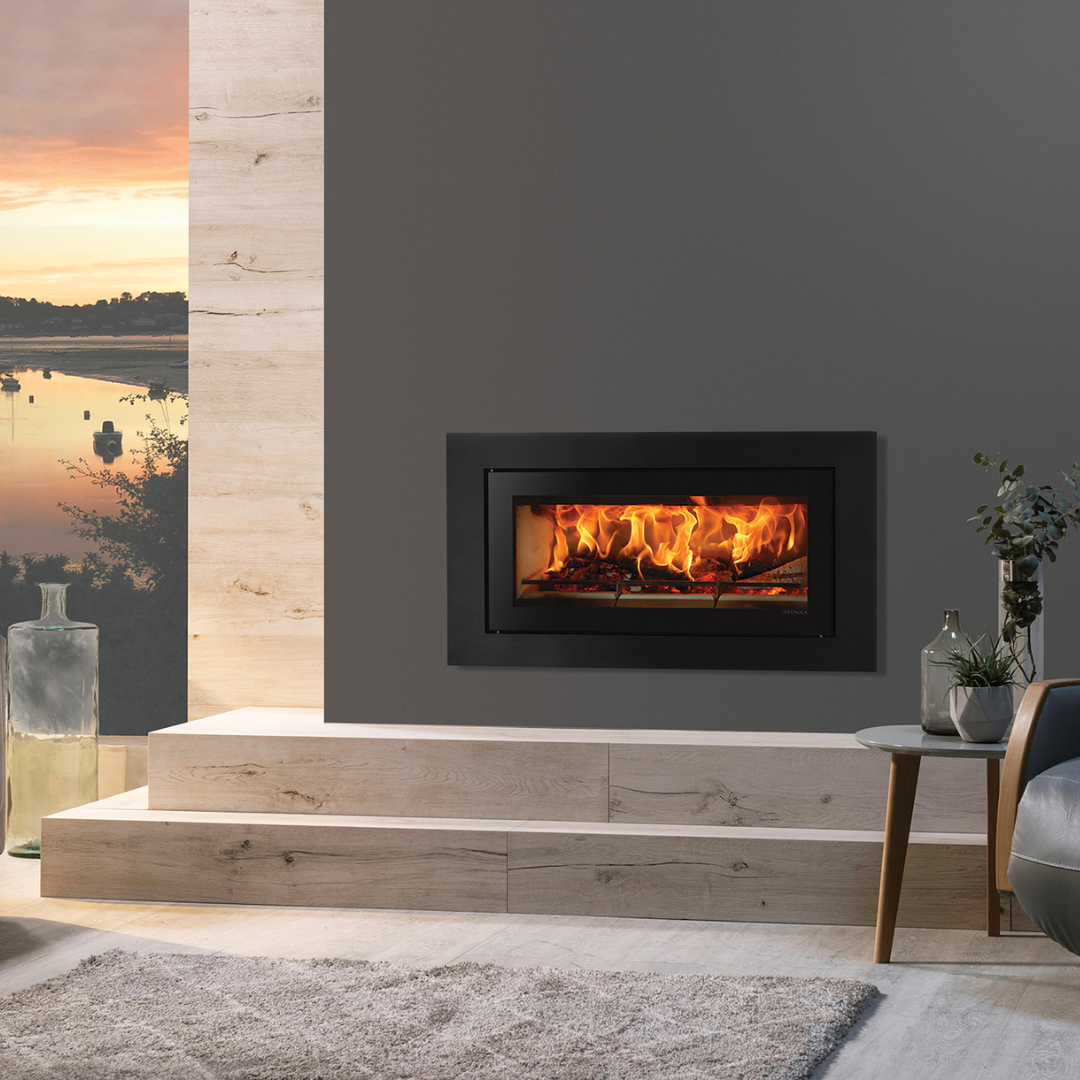

- Steel XS – slimmer alternative for narrower spaces
Optional Extras:
- External air kit
- Warm air ducting kit
- 10° angled flue outlet
- Multiple frame options to suit the installation style
Fire Dimensions
| Width | Height | Depth |
|---|---|---|
| 950mm | 440mm | 350mm |
Frame Dimensions
| Width | Height | Frame Depth | Off-wall Depth | |
|
Profil - Metallic Black |
1039 | 542 | 33 | - |
| Steel - Metallic Black | 1439 | 622 | 3 | 34 |
| Steel XS - Metallic Black | 1111 | 622 | 3 | 34 |
| Bauhaus - Metallic Black | 1050 | 554 | 36 | - |
| Edge Kit | 1089 | 592 | 34* | - |
| Edge 'Cool Wall' Kit | 1093 | 603 | 59** | - |
| Edge+ Kit | 810733 | 598 | 34*# | - |
* Once installed, Edge kits are flush with the finished wall surface.
**Once installed, Edge 'Cool Wall' Kits are recessed 28mm (Studio 1 & 2) or 12mm (Studio 3) from the finished surface.
#Depth is adjustable between 32mm and 52mm between Edge+ frame and kit when fitted.
