Description

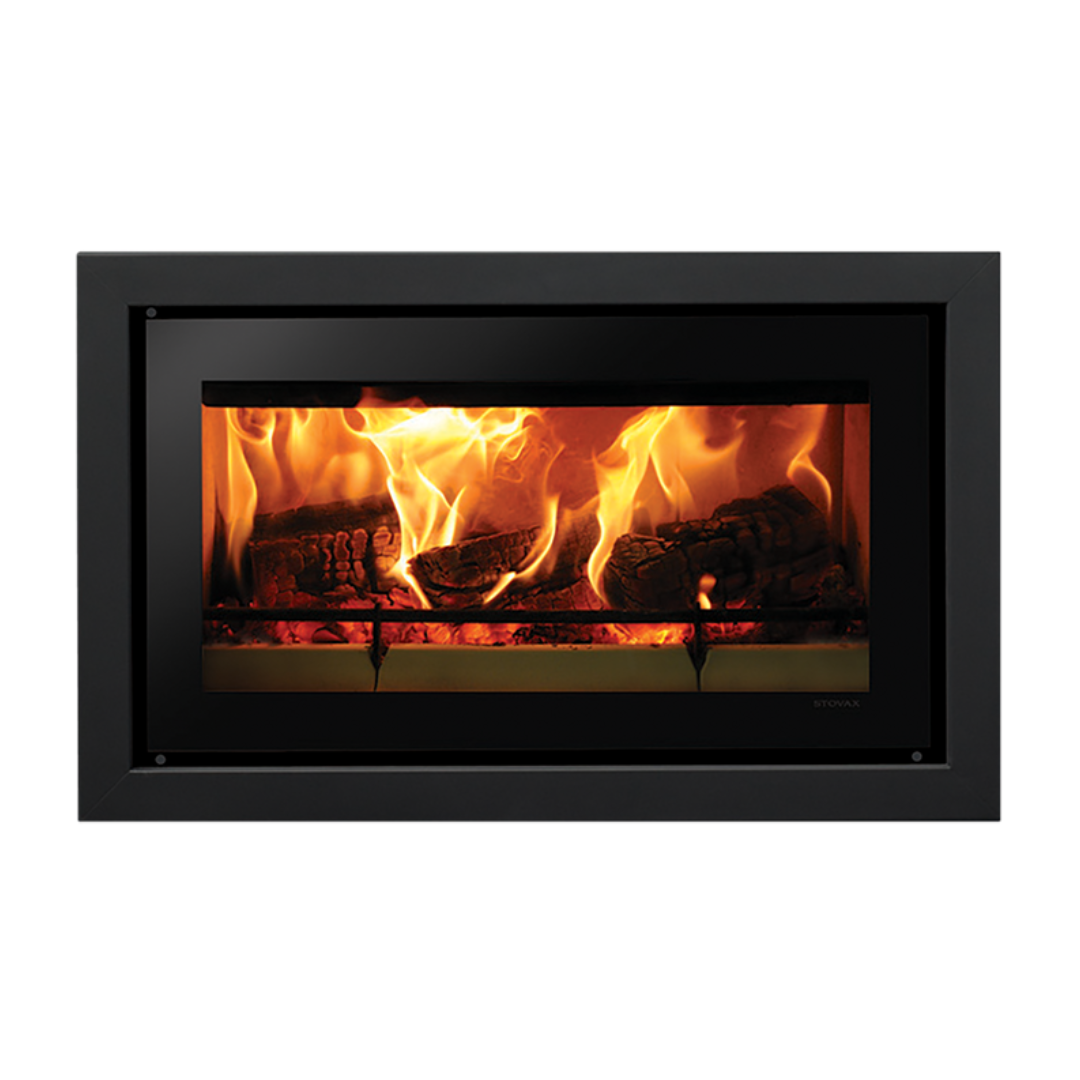

The Stovax Studio 1 Inset combines elegant widescreen proportions with impressive heating performance, making it a popular choice for contemporary interiors.
Delivering a nominal 5kW heat output, the Studio 1 offers the perfect balance of efficiency, flame visuals, and installation flexibility. Its clean-lined inset design creates a striking focal point while advanced combustion technology ensures excellent environmental performance.
Key Features
- Fuel type: Wood burning
- Heat output: 5.0kW (range 1.7–7.0kW)
- Efficiency: 77.8%
- Energy rating: A
- Ecodesign compliant
- DEFRA exempt – approved for use in smoke control areas
- Cleanburn technology for high-efficiency burning
- Airwash system for cleaner glass
- TCL high-density thermal lining system
- Convected and radiant heat
- Single air control for responsive flame adjustment
- External air facility available
- Optional warm air ducting kit
- Optional 10° angled flue outlet
- Maximum log length: 300mm (12”)
- Flue outlet: 153mm (6”)
Design & Performance
The Studio 1 delivers a wider flame picture while maintaining the manageable 5kW output ideal for many living spaces. The combination of Cleanburn and Airwash technology ensures both strong efficiency and a crisp, clear view of the fire.
Its inset format makes it a superb choice for those wanting a clean, architectural fireplace with modern styling.
Frame & Styling Options

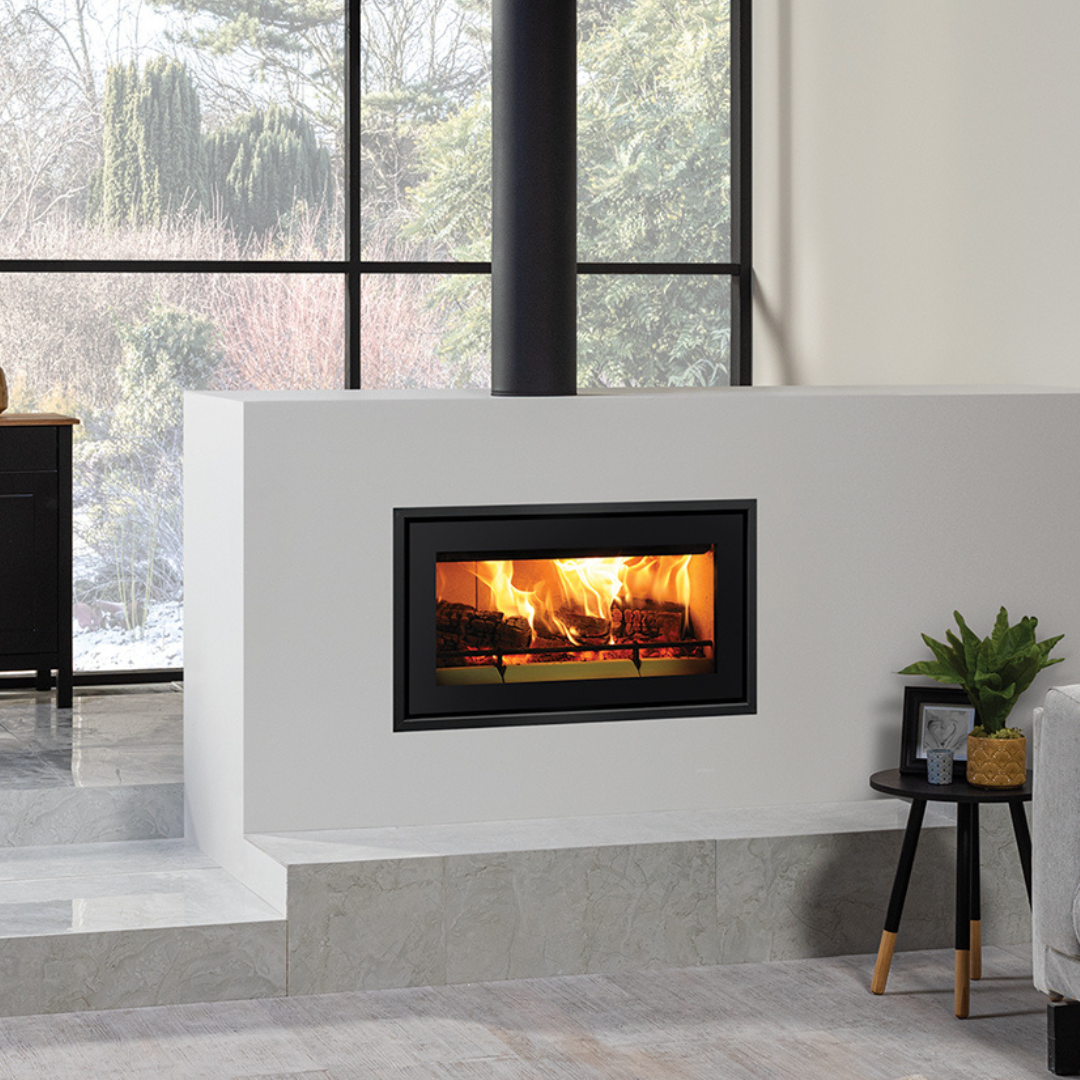

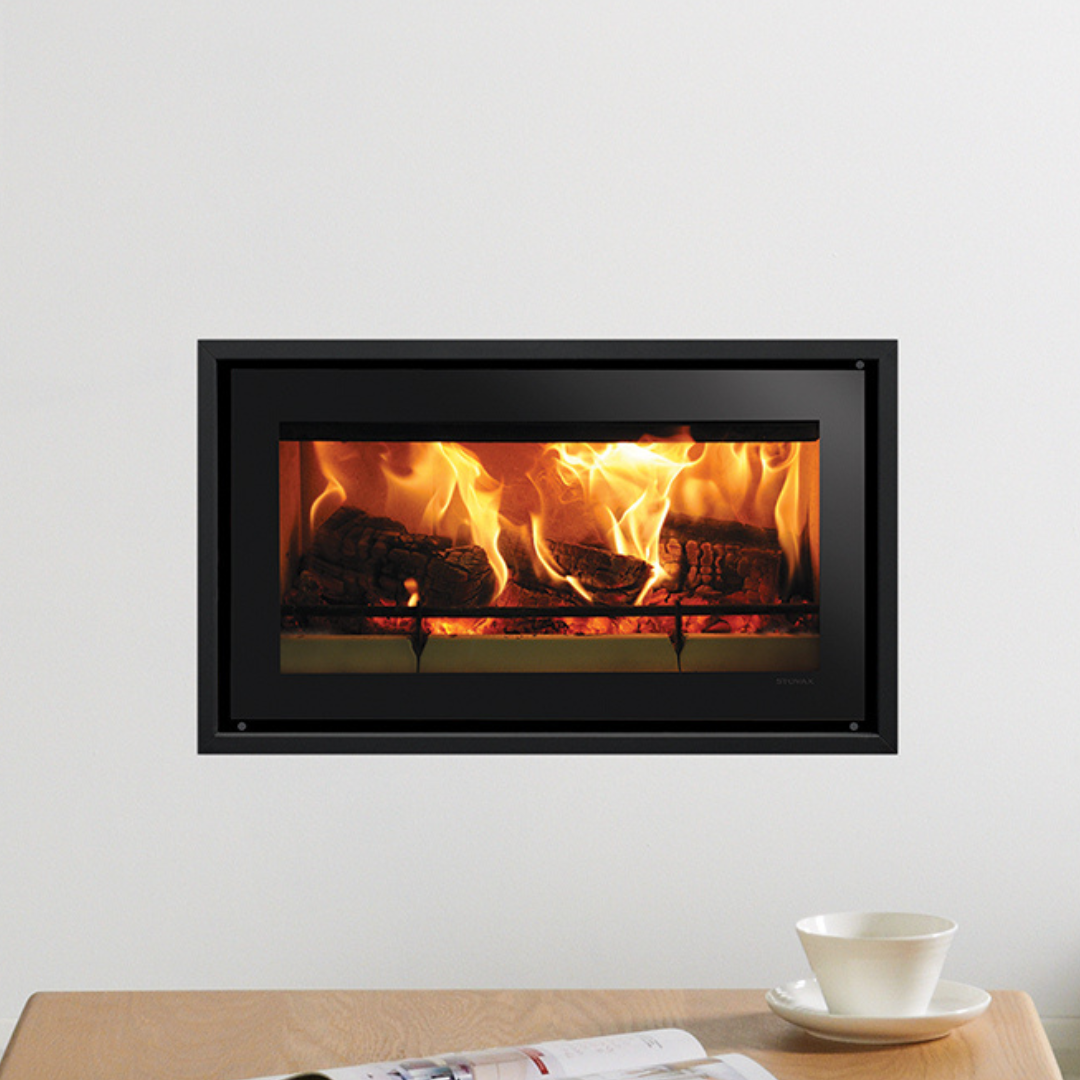

- Edge – frameless hole-in-the-wall look
- Edge+ – neat steel border for simplified finishing

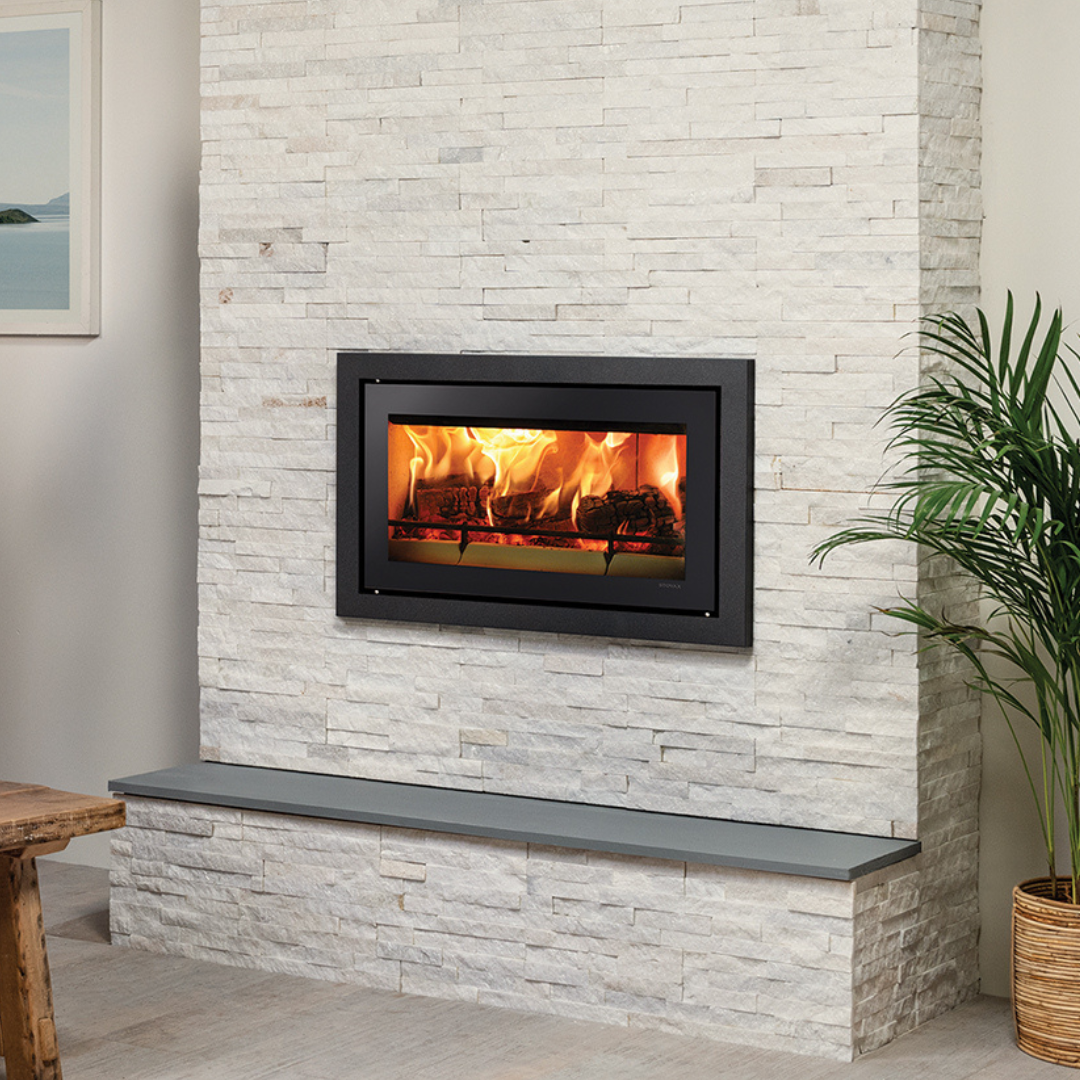

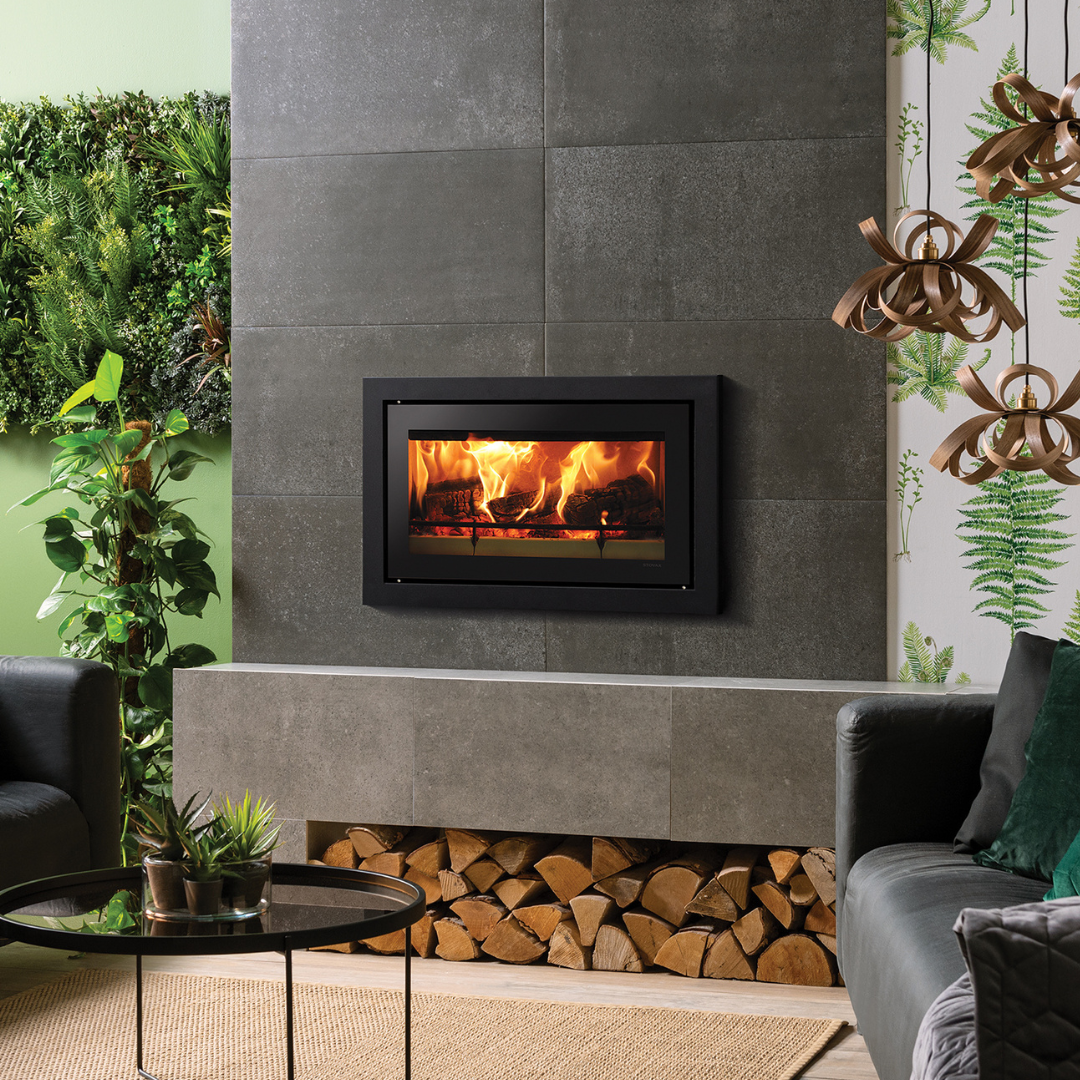

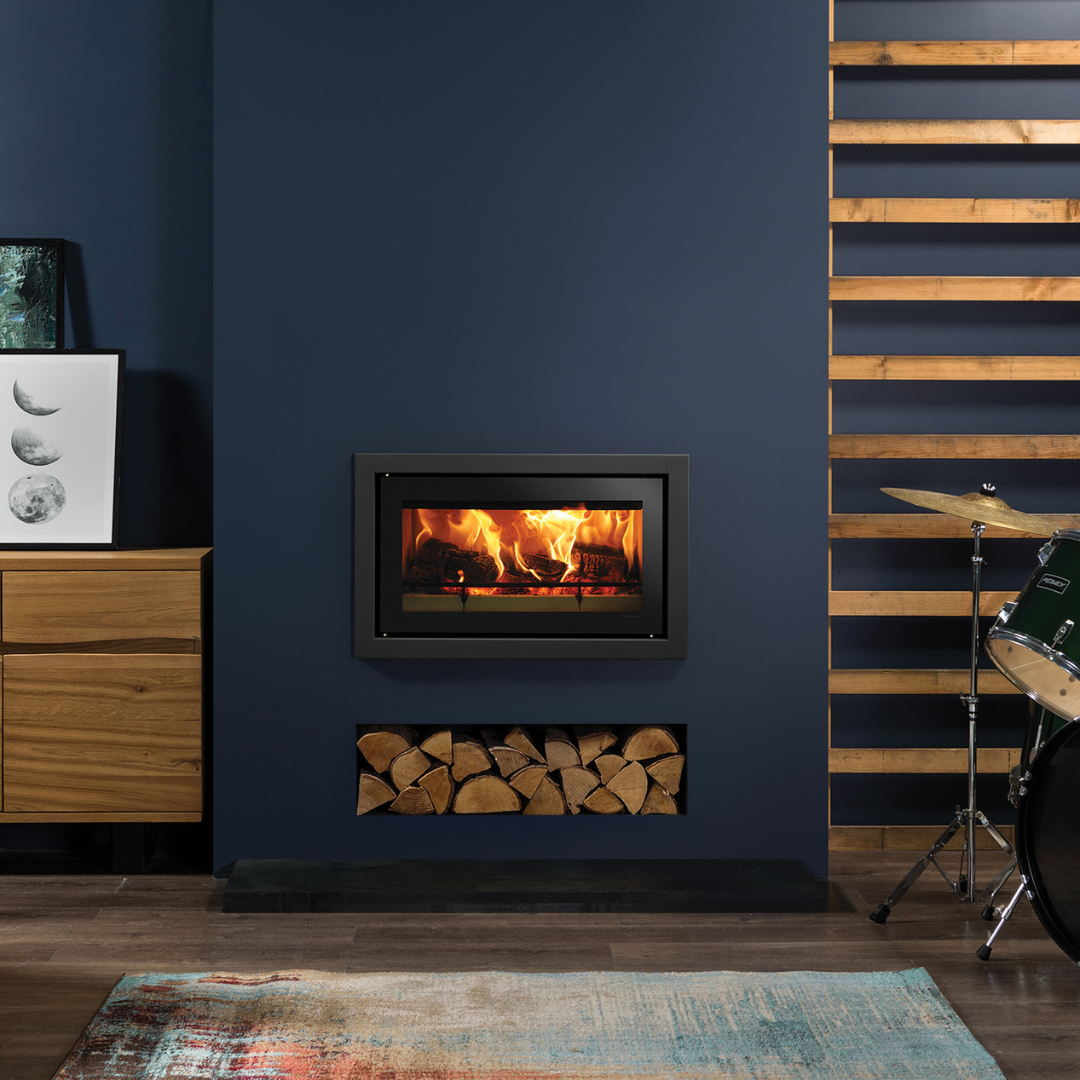

- Profil – timeless frame design
- Bauhaus – elegant tapered frame

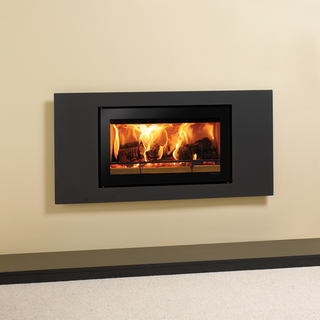

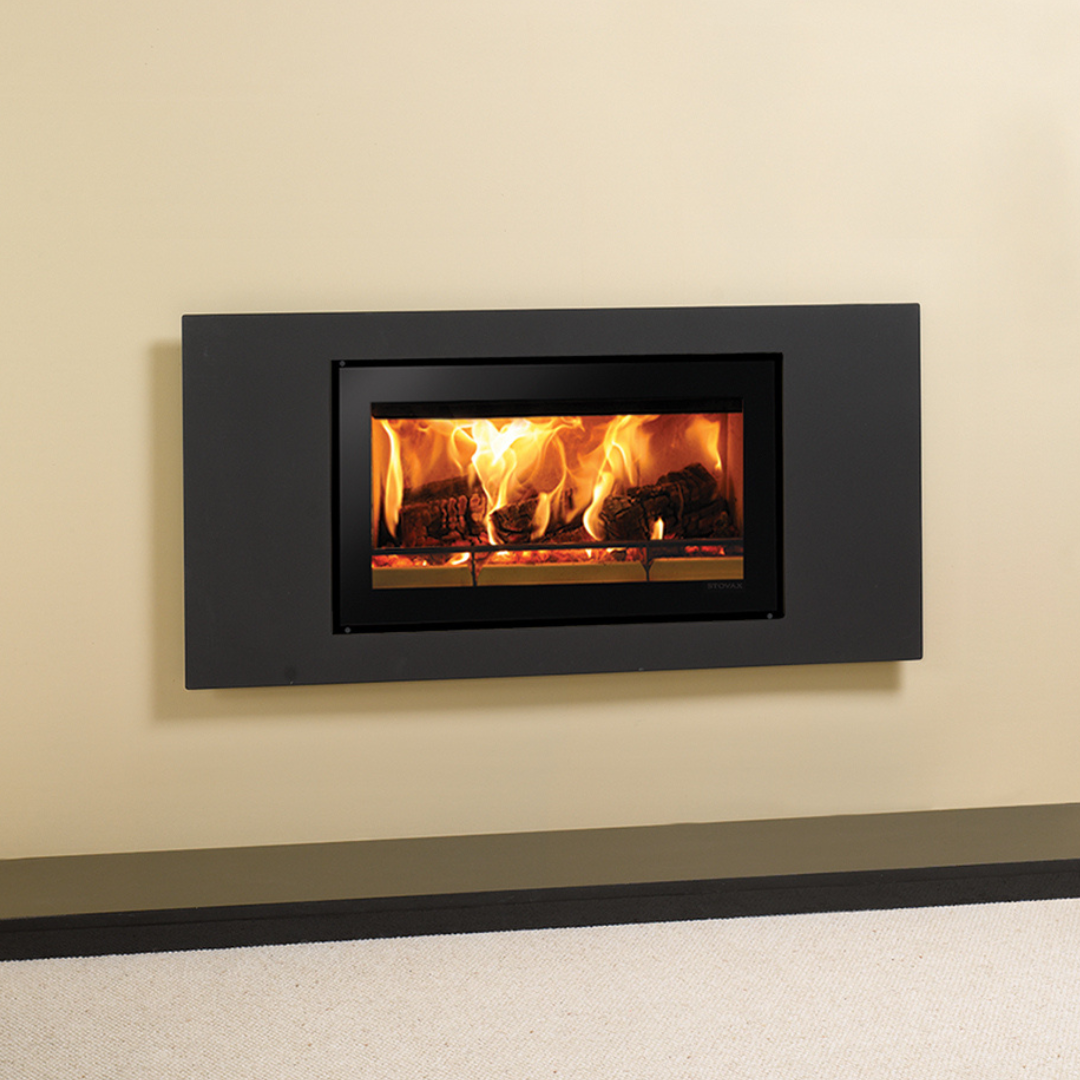

- Steel – bold metallic surround

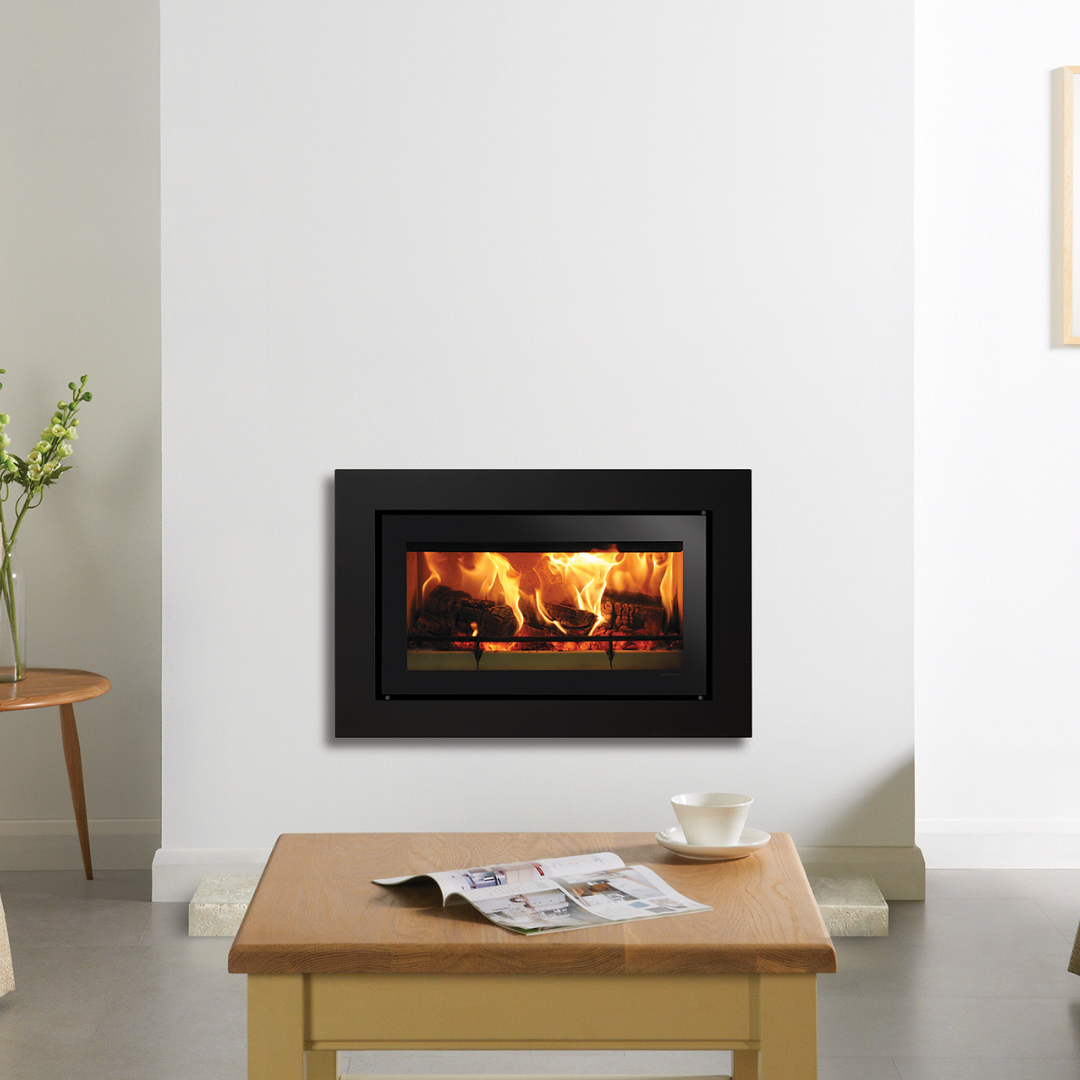

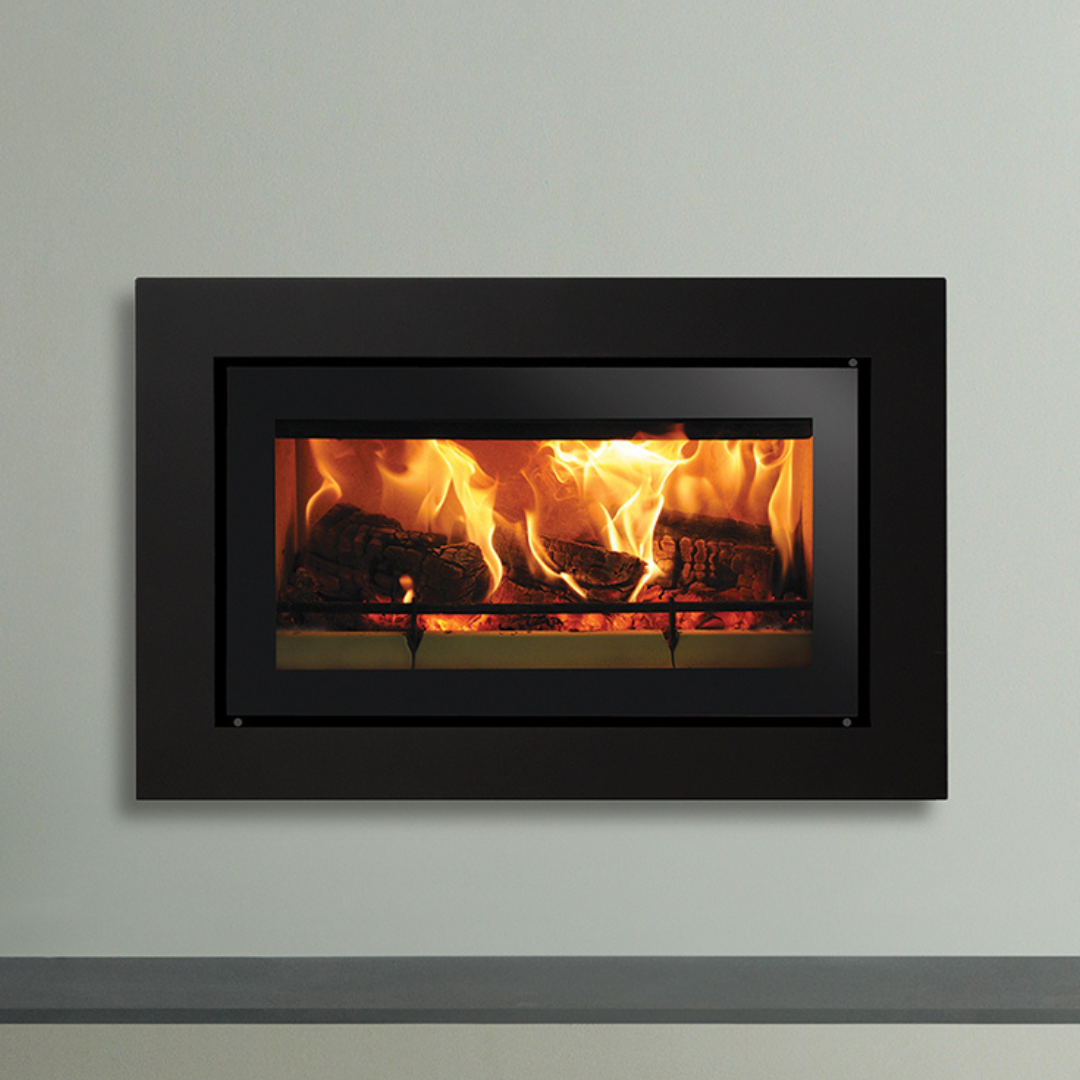

- Steel XS – slimmer statement frame
Optional Extras
- External air kit
- Warm air ducting kit
- 10° angled flue outlet
- Wide choice of cassette frame finishes
Fire Dimensions
| Width | Height | Depth |
|---|---|---|
| 745mm | 415mm | 350mm |
Frame Dimensions
| Width | Height | Frame Depth | Off-wall Depth | |
|
Profil - Metallic Black |
839 | 517 | 33 | - |
| Steel - Metallic Black | 1203 | 567 | 3 | 34 |
| Steel XS - Metallic Black | 881 | 567 | 3 | 34 |
| Bauhaus - Metallic Black | 850 | 526 | 36 | - |
| Edge Kit | 889 | 567 | 34* | - |
| Edge 'Cool Wall' Kit | 893 | 578 | 59** | - |
| Edge+ Kit | 893 | 573 | 34*# | - |
* Once installed, Edge kits are flush with the finished wall surface.
**Once installed, Edge 'Cool Wall' Kits are recessed 28mm (Studio 1 & 2) or 12mm (Studio 3) from the finished surface.
#Depth is adjustable between 32mm and 52mm between Edge+ frame and kit when fitted.
