Description

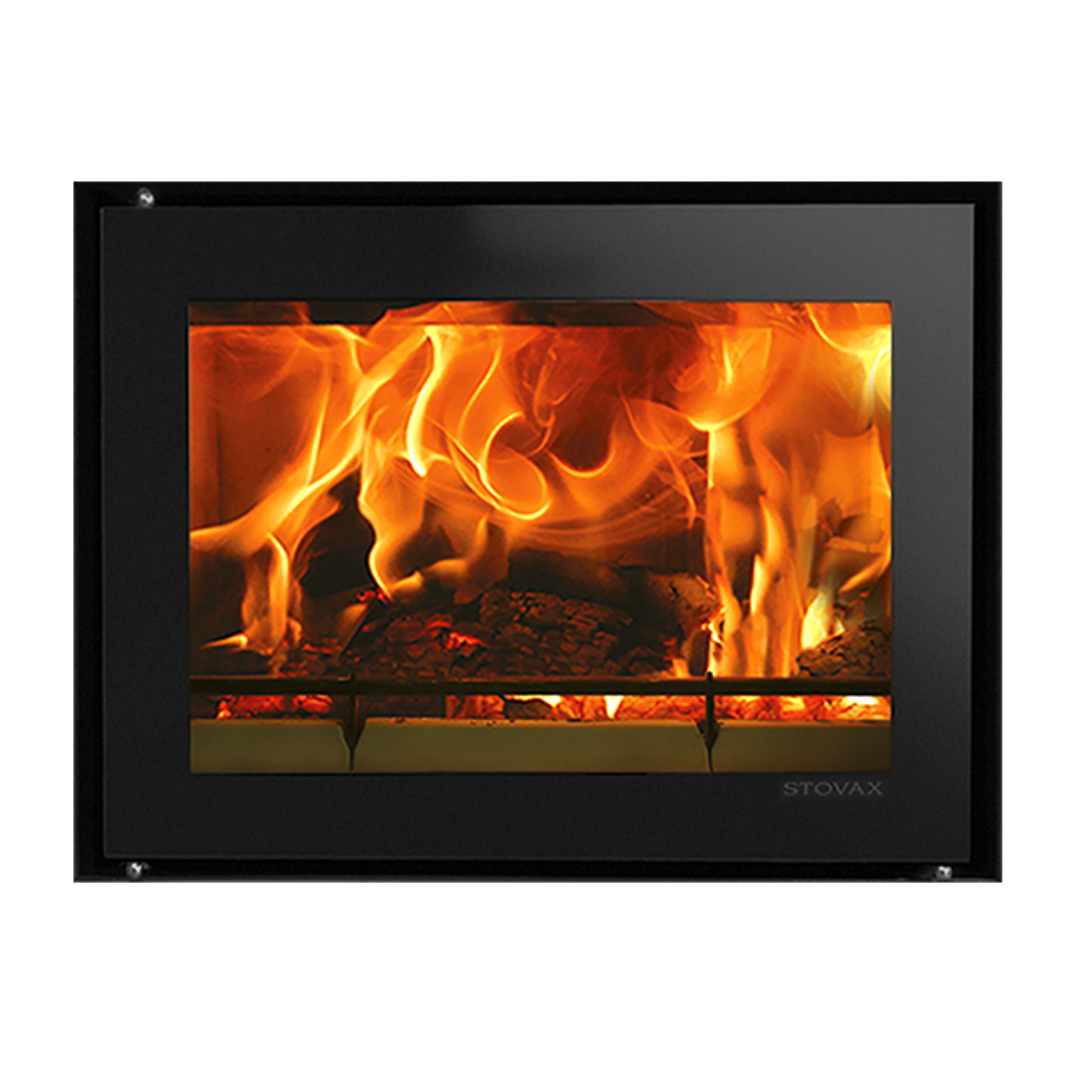

The Stovax Studio 500 Inset is the most compact model in the Studio range, combining contemporary styling with efficient wood burning performance. Designed to fit a standard 22” British fireplace opening, it offers a simple way to create a striking inset fire without extensive building work.
With a nominal 5kW heat output, the Studio 500 is ideal for smaller to medium-sized rooms, delivering impressive flame visuals, strong efficiency, and Ecodesign-compliant performance.
Key Features
- Fuel type: Wood burning
- Heat output: 5.0kW (range 1.7–7.0kW)
- Efficiency: 75.8%
- Energy rating: A
- Ecodesign compliant
- DEFRA exempt – approved for use in smoke control areas
- Cleanburn technology for improved combustion efficiency
- Airwash system for a clearer flame view
- TCL high-density thermal lining system
- Convected and radiant heat
- Single air control with high setting for lighting and refuelling
- External air facility available
- Optional warm air ducting kit
- Optional 10° angled flue outlet
- Maximum log length: 250mm (10”)
- Flue outlet: 153mm (6”)
Design & Performance
The Studio 500 offers a clean, modern flame view in a compact cassette format. Advanced Cleanburn technology introduces preheated secondary air into the firebox, helping to burn excess hydrocarbons for greater efficiency and lower emissions.
Its Airwash system helps keep the glass cleaner, while the high-density thermal lining supports durability and strong heat performance.
Frame & Styling Options

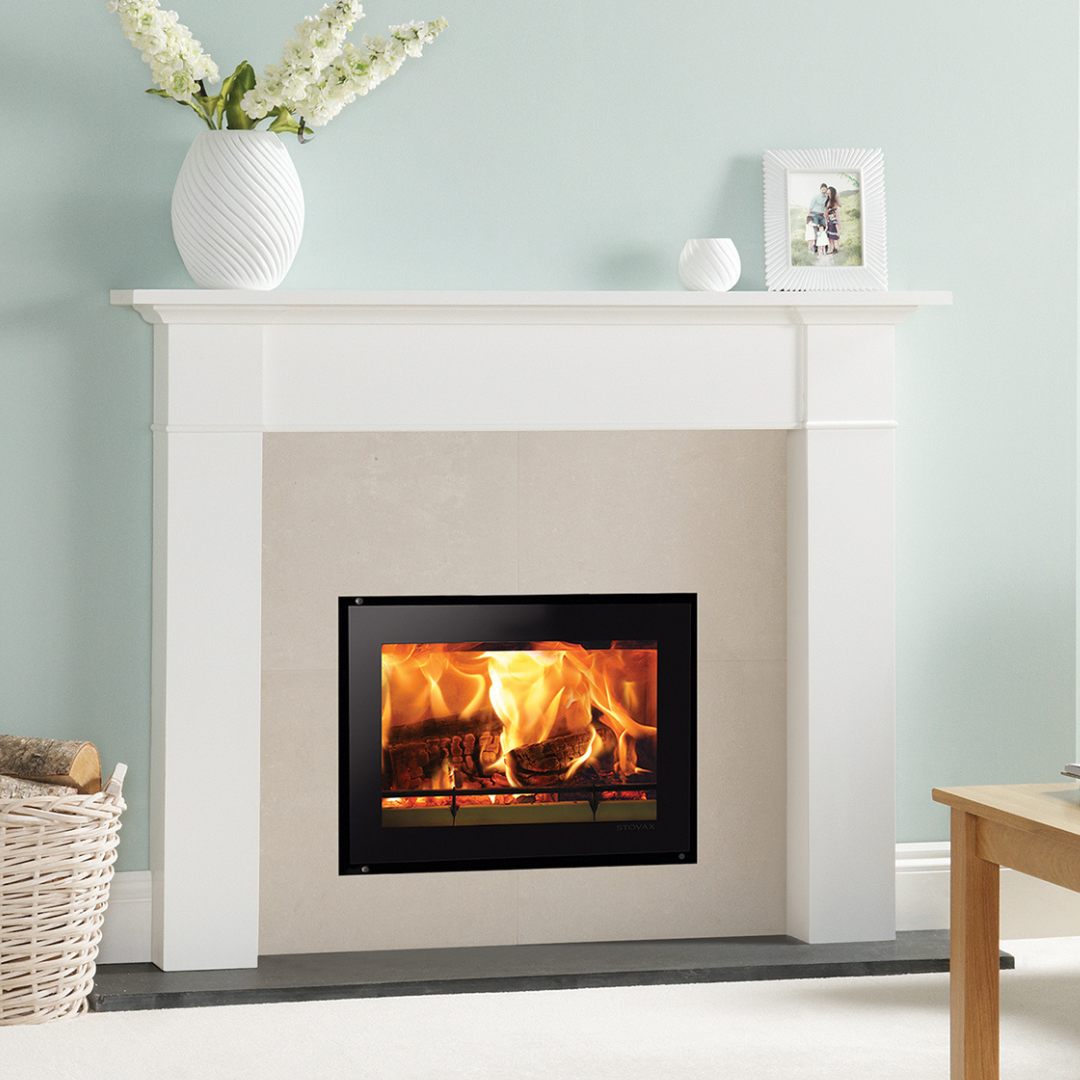

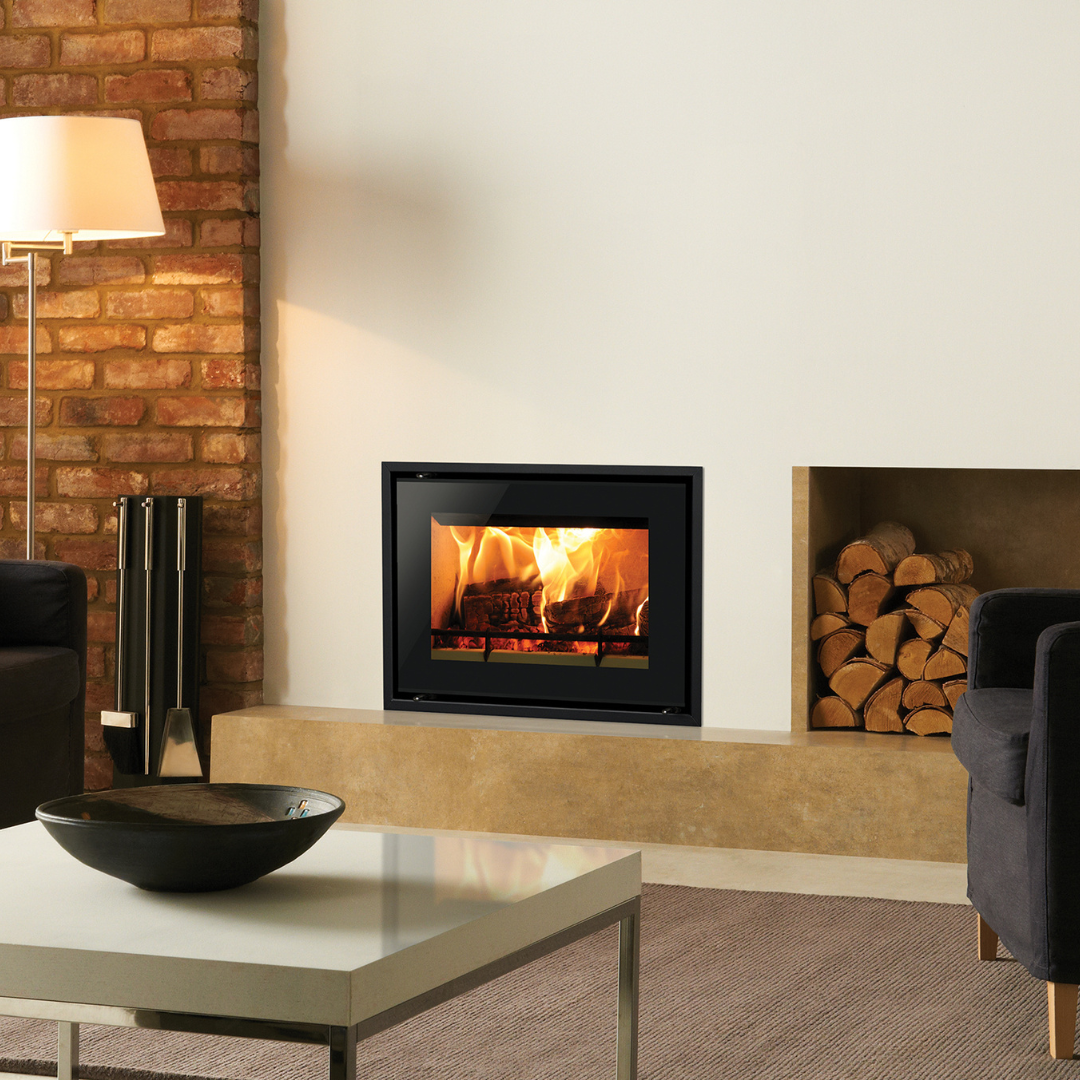

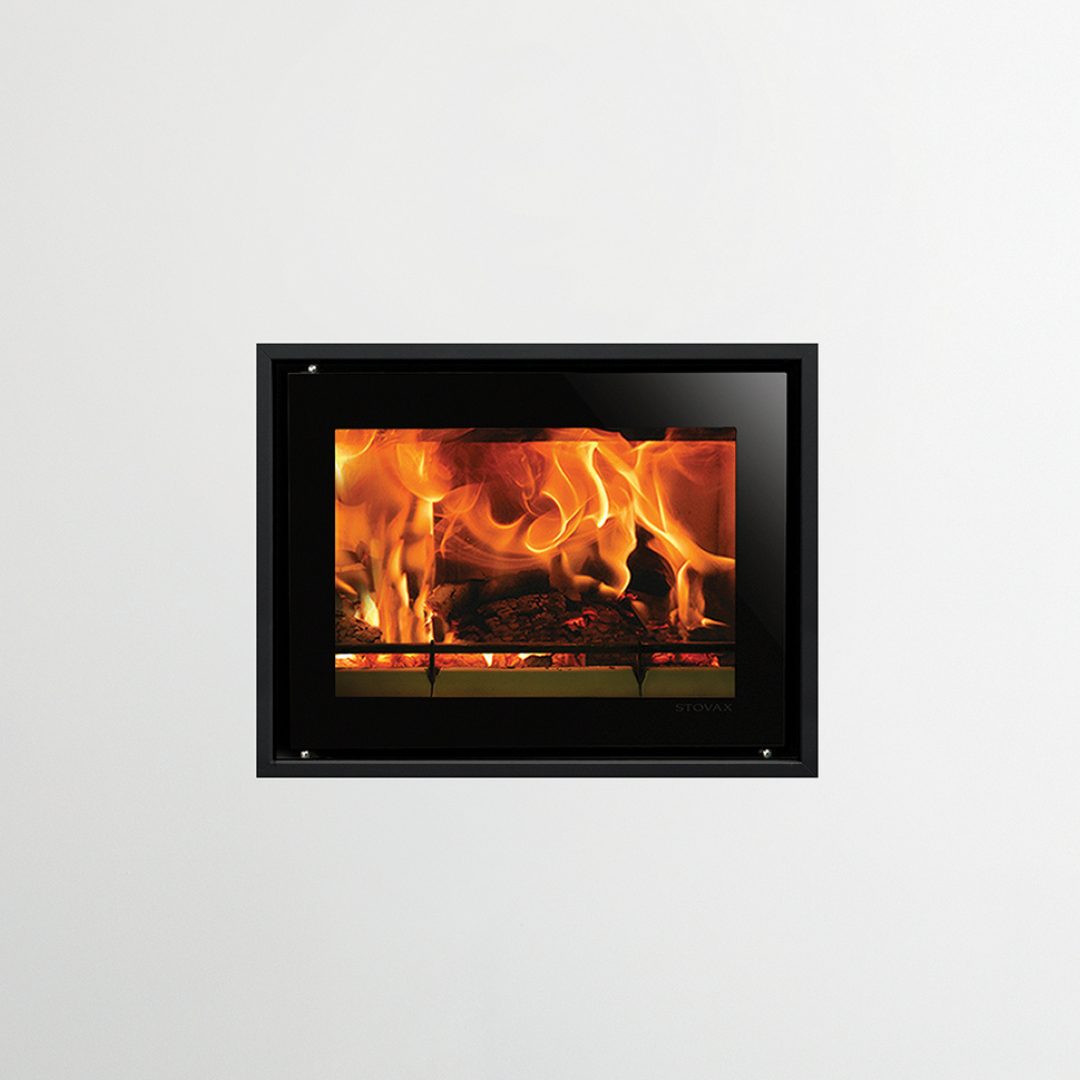

- Edge – frameless minimalist finish
- Edge+ – slim decorative border

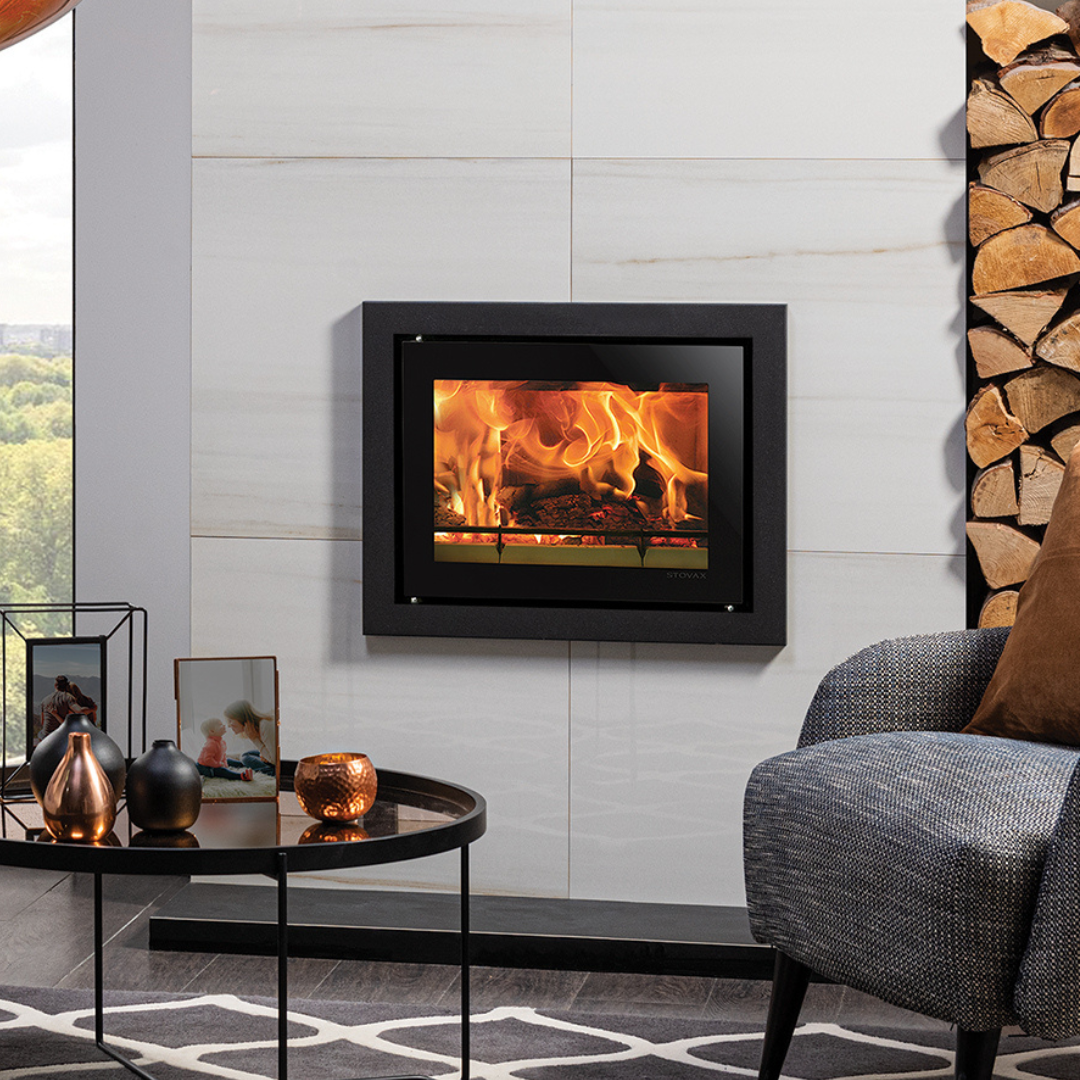

- Profil – classic framed look
- Steel – bold metallic surround

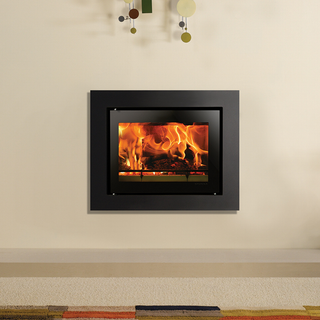

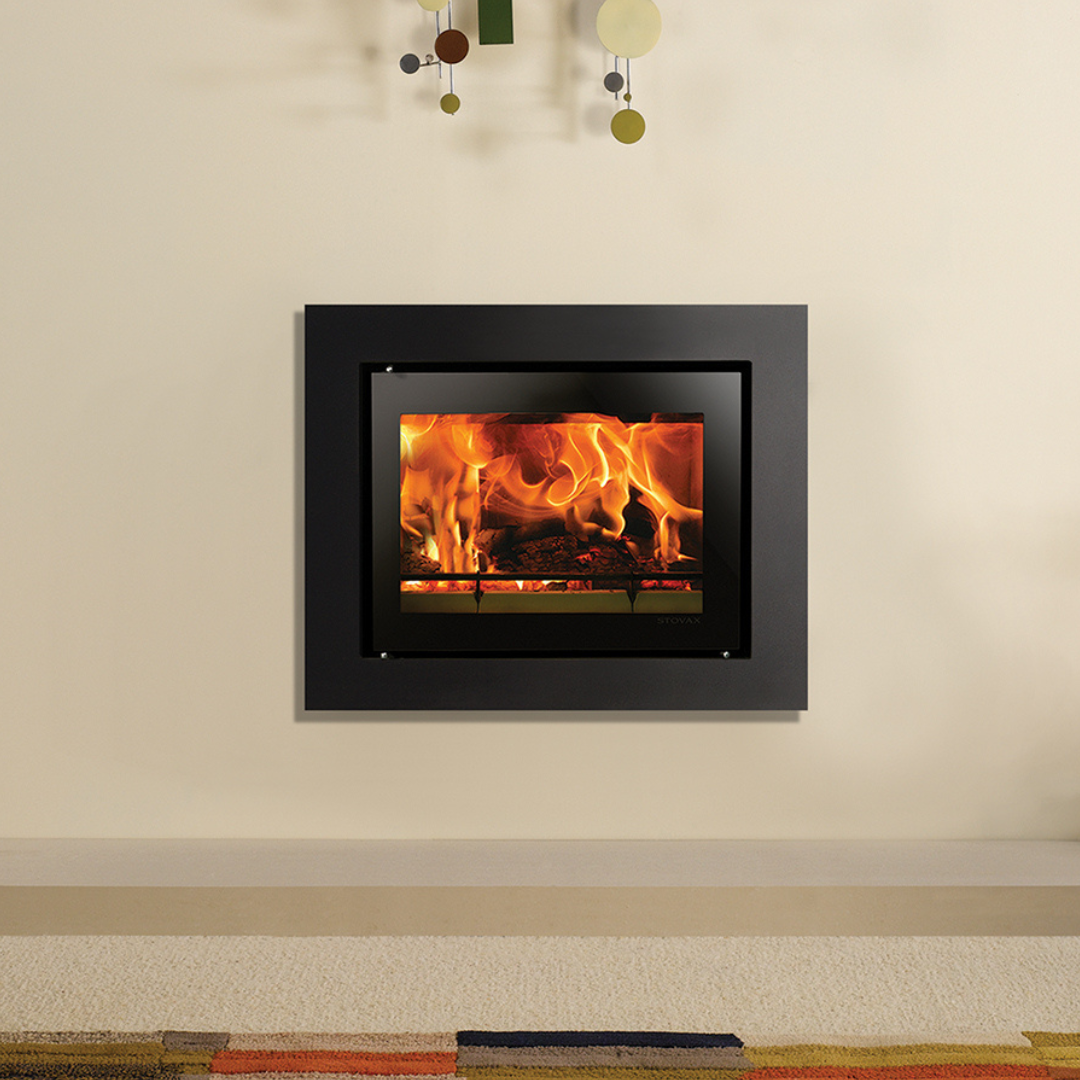

- Steel XS – slimmer steel frame option
Optional Extras
- External air kit
- Warm air ducting kit
- 10° angled flue outlet
- Choice of cassette styling frames
Fire Dimensions
| Width | Height | Depth |
|---|---|---|
| 555mm | 415mm | 350mm |
Frame Dimensions
| Width | Height | Frame Depth | Off-wall Depth | |
|
Profil - Metallic Black |
646 | 517 | 33 | - |
| Steel - Metallic Black | 1010 | 567 | 3 | 34 |
| Steel XS - Metallic Black | 688 | 567 | 3 | 34 |
| Edge Kit | 696 | 567 | 34* | - |
| Edge 'Cool Wall' Kit | 700 | 578 | 59** | - |
| Edge+ Kit | 700 | 573 | 34*# | - |
* Once installed, Edge kits are flush with the finished wall surface.
**Once installed, Edge 'Cool Wall' Kits are recessed 28mm (Studio 1 & 2) or 12mm (Studio 3) from the finished surface.
#Depth is adjustable between 32mm and 52mm between Edge+ frame and kit when fitted.
