Description
The Stovax Studio Air 2 Inset is designed for larger spaces, offering a wider flame picture and increased heat output while maintaining the sleek, built-in aesthetic of the Studio range.
With a powerful 8.2kW heat output, this model is suited to open-plan areas and larger rooms, delivering both visual impact and high-performance heating.
Key Features
- Fuel type: Wood burning
- Heat output: 8.2kW (range 2.8–11kW)
- Efficiency: 78.5%
- Energy rating: A
- Ecodesign compliant
- DEFRA exempt – suitable for smoke control areas
- Cleanburn technology for reduced emissions
- Powerful Airwash system for a clear flame view
- Single air control for easy operation
- Boost mode for rapid ignition
- High-density firebrick lining & dual-layer firebox
- Cast iron base for durability
- Optional external air supply (room sealed)
- Optional warm air ducting kit (up to 2 rooms)
- Reversible door (optional kit)
- Maximum log length: 400mm
- Flue outlet: 6” (152mm)

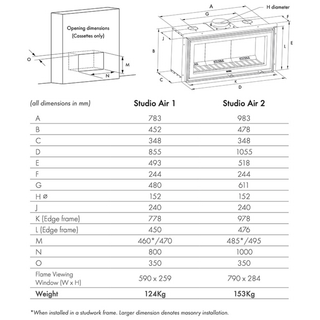

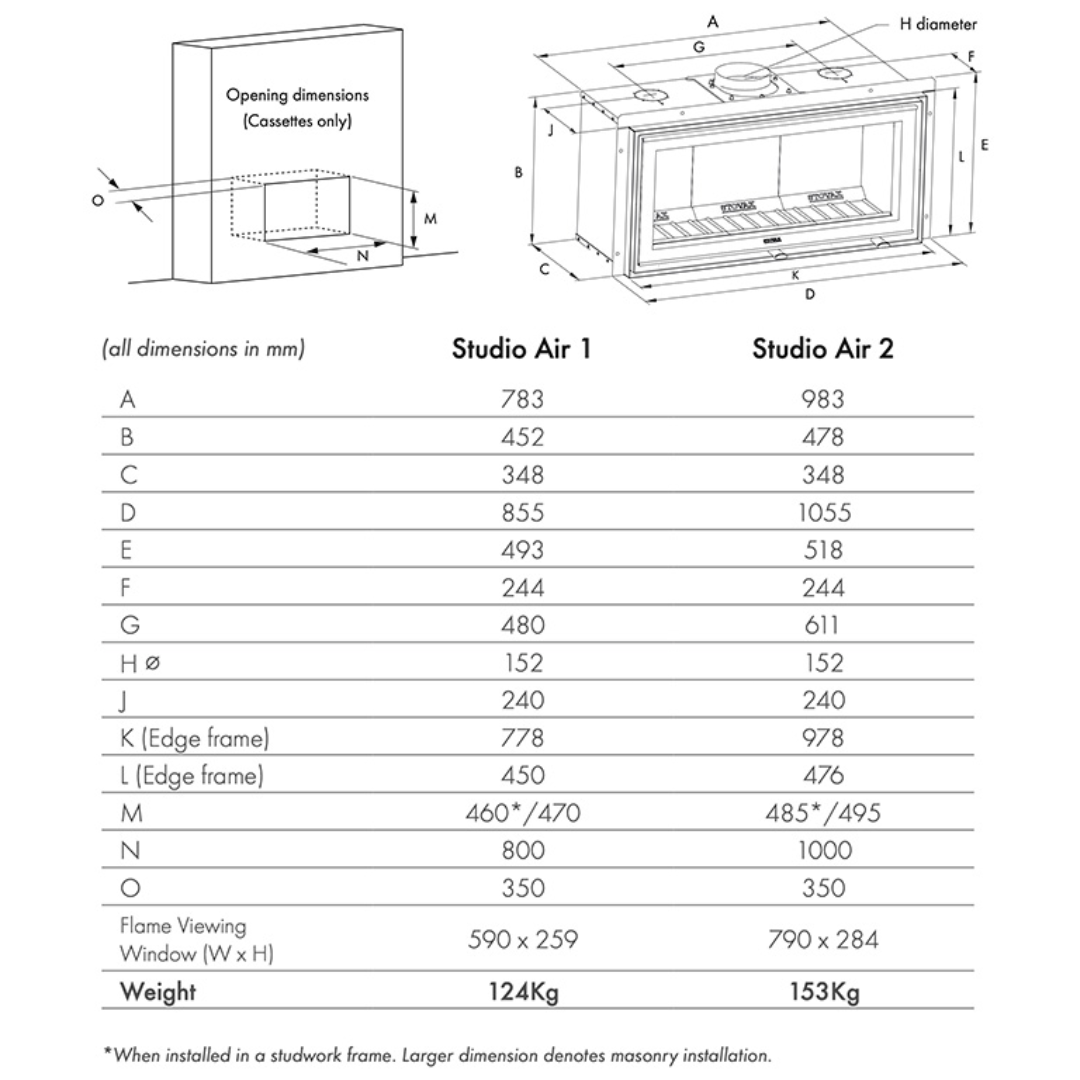

Fire Dimensions
| Width | Height | Depth |
|---|---|---|
| 983mm | 478mm | 348mm |
Frame Dimensions (mm)
| Width | Height | Depth | |
| Edge+ | 1017 | 514 | 3.5 |
| Profil (3-Sided) | 1079 | 526 | 38 |
| Profil (4-Sided) | 1079 | 576 | 38 |
Design & Performance
The Studio Air 2 offers an expansive flame view thanks to its wider format and low fuel bed, creating a dramatic focal point within any living space. Advanced airflow systems ensure clean combustion and efficient heat output, while maintaining excellent visual clarity.
Built for Modern Living
With an integrated external air connection, the Studio Air 2 can be installed as a room-sealed appliance, making it suitable for modern homes with high levels of insulation.
Ease of Use
The intuitive single air control allows precise flame adjustment, while the built-in boost mode ensures quick and reliable ignition.

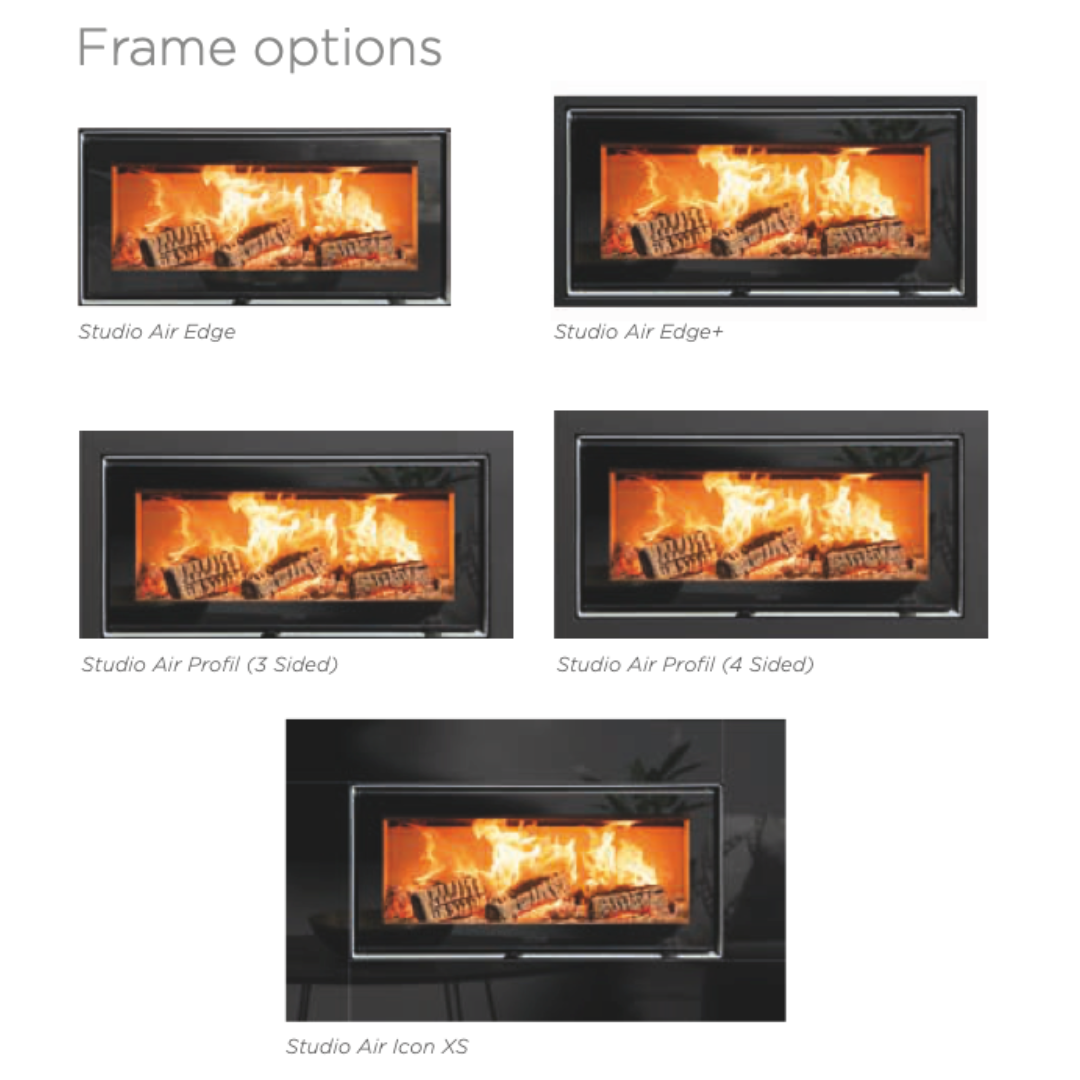

Frame & Finish Options
- Edge (frameless) – minimalist built-in look
- Edge+ – slim frame for a neat finish
- Profil (3 or 4-sided) – versatile installation options

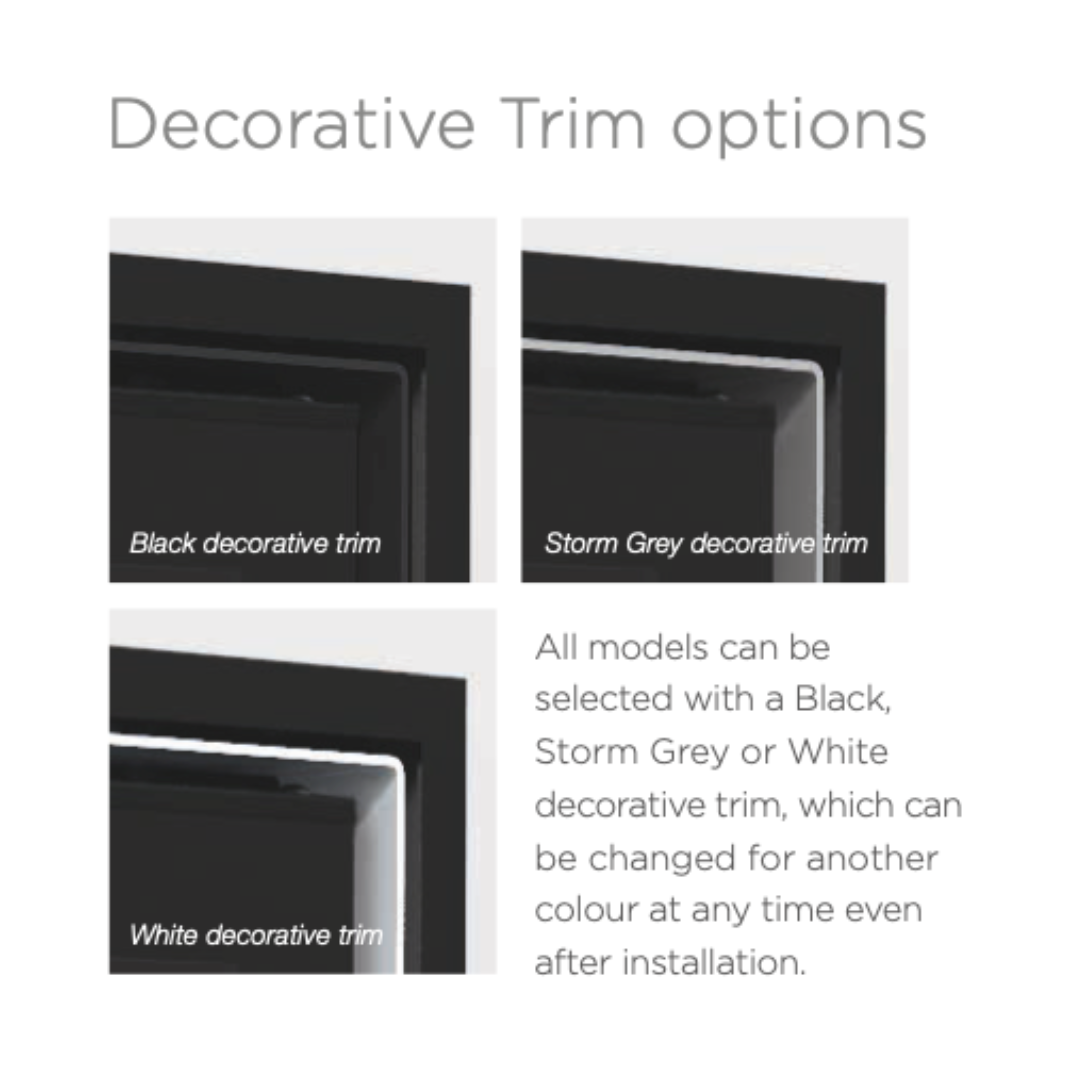

Decorative trims available: Black, Storm Grey, White (interchangeable after installation)
Please contact us for any of the following optional extras:
- Reverse Door Hanging Kit;
- Warm Air Ducting Kit.
